Home >> Infiniti >> 2008 >> M35 V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Headlamp Alignment Control Module >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Auto Aiming Operation Check (Function Test)

Auto Aiming Operation Check (Function Test)

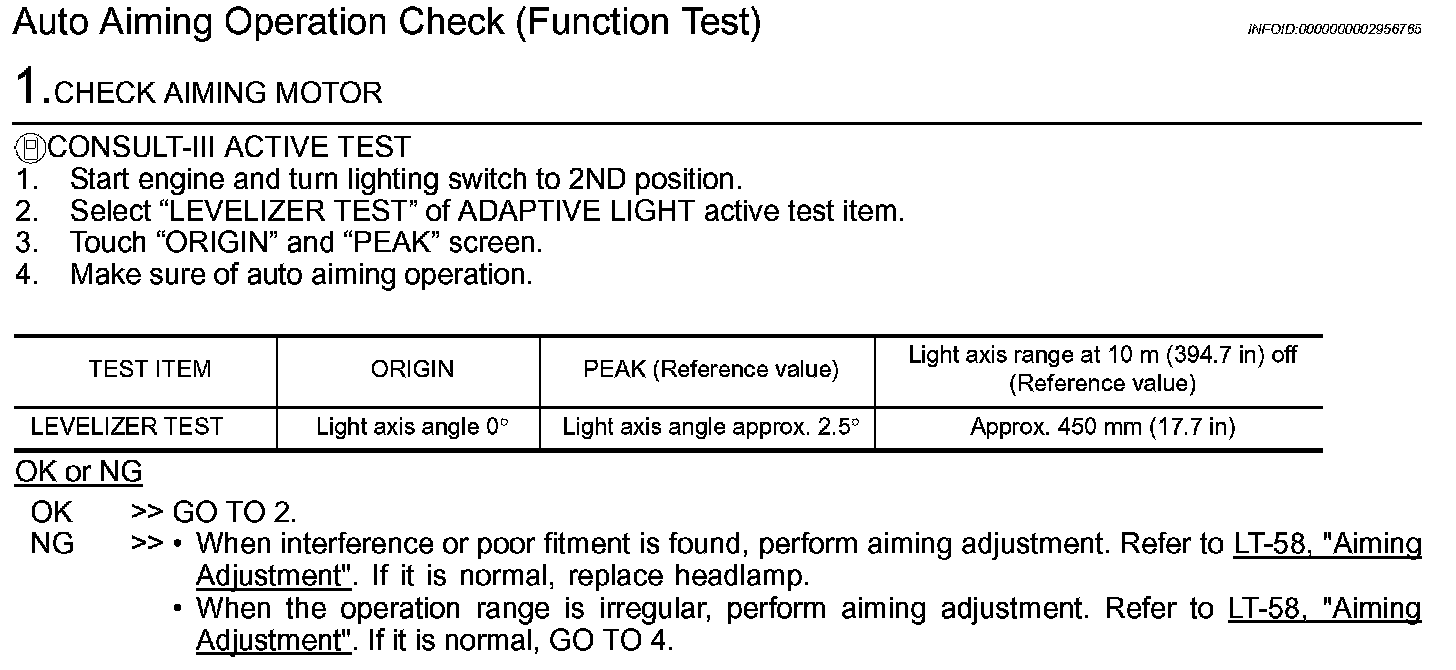

Step 1:

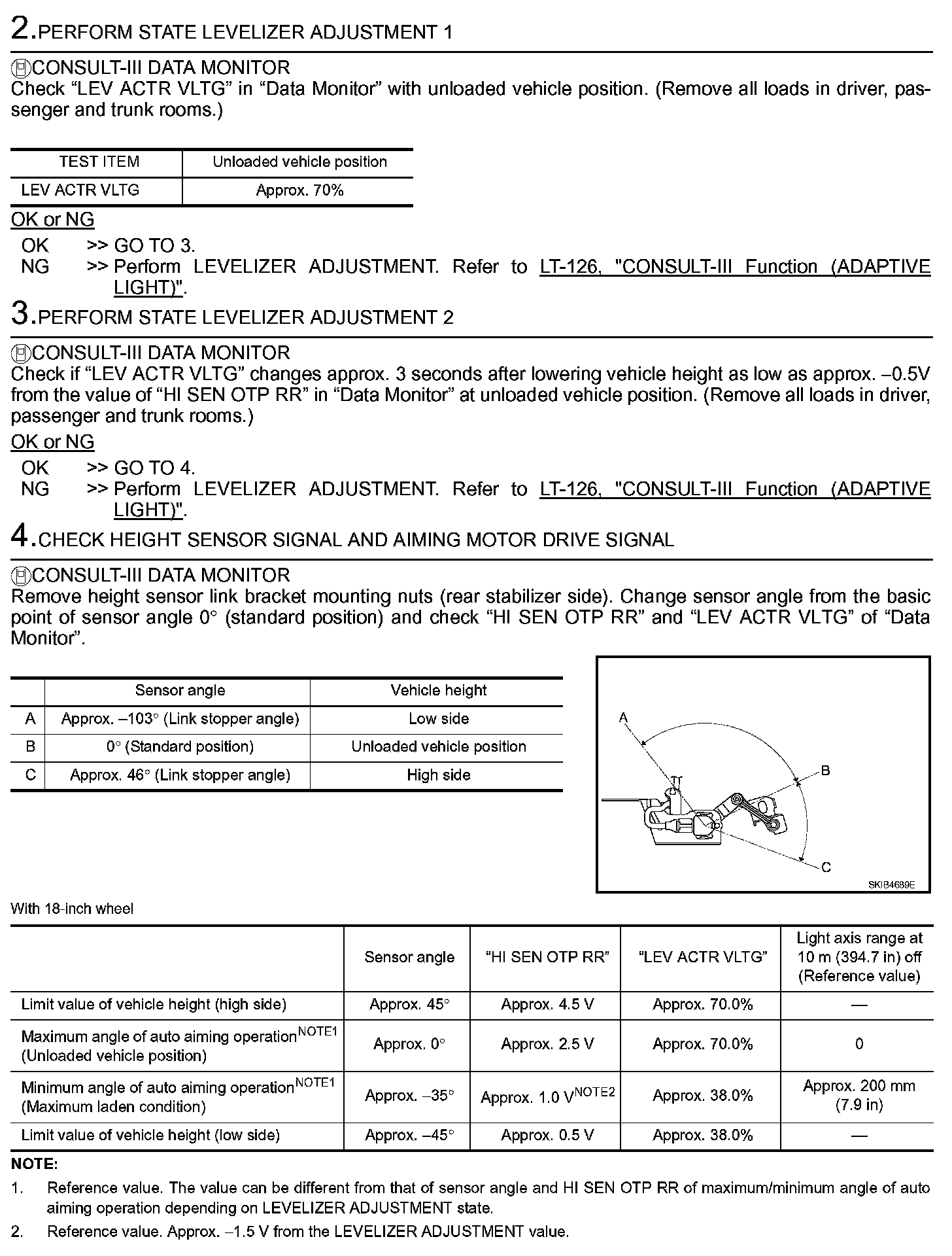

Step 2-4:

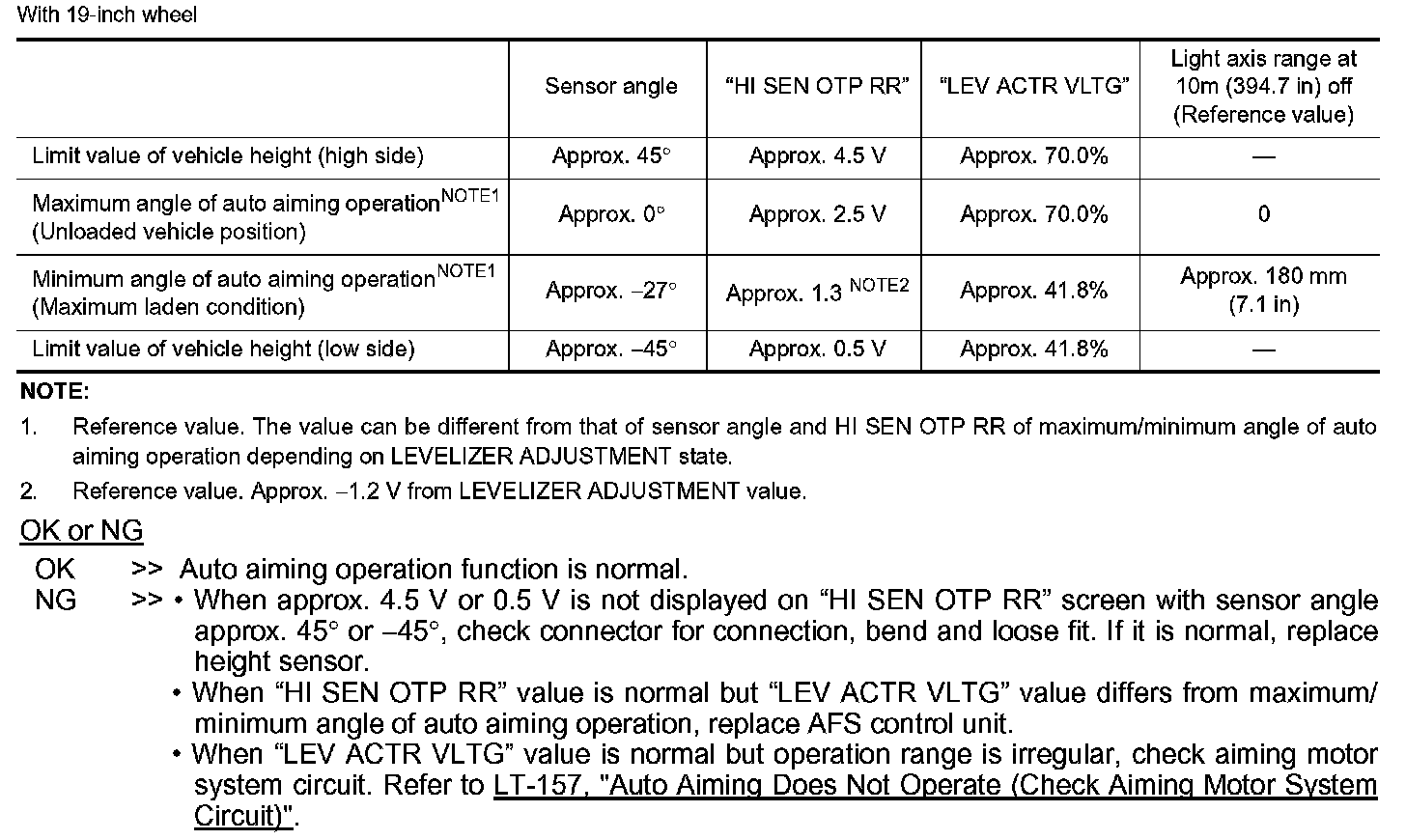

Step 4 (Continued):
