Headlamp Alignment Control Module: Service and Repair

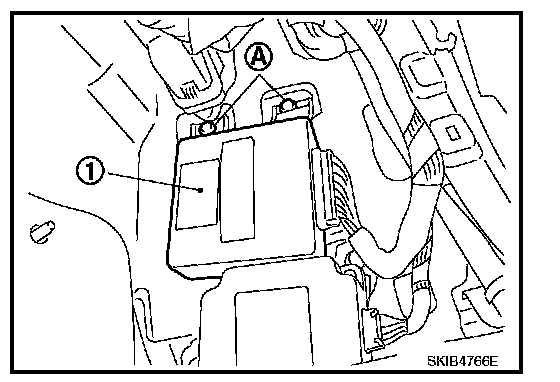

Removal and Installation of AFS Control UnitREMOVAL
1. Remove dash side finisher RH.
2. Remove screw (A).
3. Disconnect AFS control unit connector.
4. Remove AFS control unit (1).
INSTALLATION
Installation is the reverse order of removal.
