Headlamp (For USA) - Xenon Type

Bulb Replacement

CAUTION:
- Disconnect the battery negative terminal or remove the fuse.
- Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
Never touch bulb by hand while it is lit or right after being turned off.

- Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of lamp. When replacing bulb, be sure to replace it with new one.

HEADLAMP (INNER) HIGH BEAM
1. Remove air cleaner case when replacing bulb LH.
2. Remove washer tank inlet when replacing bulb RH.
3. Turn plastic cap counterclockwise and unlock it.
4. Turn bulb socket counterclockwise and unlock it.
5. Disconnect connector, and remove bulb.

Headlamp (inner) high beam : 12 V - 60 W (HB3)

HEADLAMP (OUTER) LOW BEAM
1. Remove fender protector (front).
2. Turn plastic cap counterclockwise and unlock it.

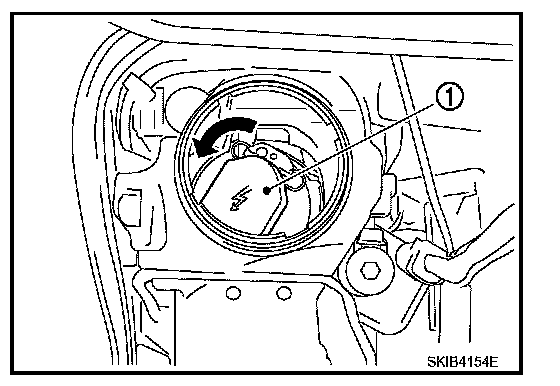

3. Turn bulb socket (1) counterclockwise and unlock it.
4. Unlock retaining spring and remove bulb from headlamp.

Headlamp (outer) low beam : 12 V - 35 W (D2S)
