Fog/Driving Lamp Bulb: Service and Repair

Bulb Replacement

CAUTION:
- Disconnect the battery negative terminal or remove the fuse.
- Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it. Never touch bulb by hand while it is lit or right after being turned off.
- Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of lamp. When replacing bulb, be sure to replace it with new one.

1. Remove fender protector (front).

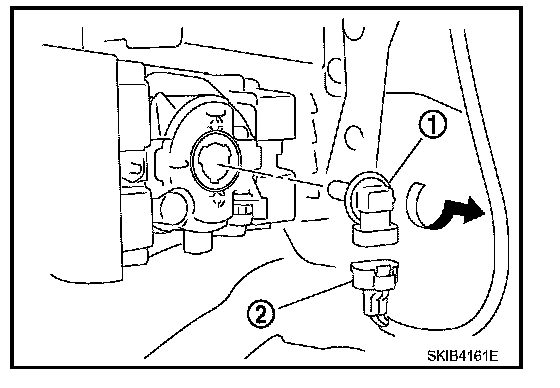

2. Turn bulb (1) counterclockwise and unlock it.
3. Disconnect connector (2), and remove bulb (1).

Front fog lamp : 12 V - 55 W (H11)
