Glove Box Lamp: Service and Repair

Glove Box Lamp

BULB REPLACEMENT, REMOVAL AND INSTALLATION

CAUTION: Disconnect the battery negative terminal or remove the fuse.

Removal
1. Remove glove box cover.

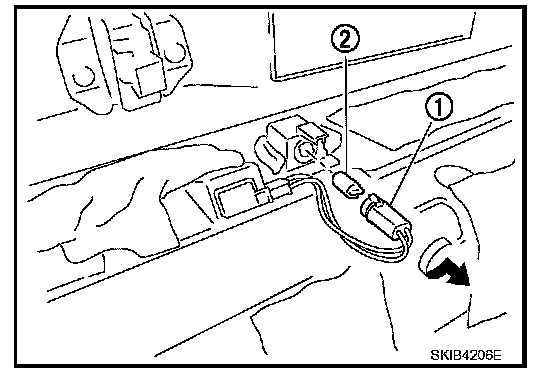

2. Turn globe box lamp bulb socket (1) counterclockwise and unlock it.
3. Remove bulb (2).

Glove box lamp : 12 V - 1.4 W

Installation
Installation is the reverse order of removal.
