Courtesy Lamp Bulb: Service and Repair

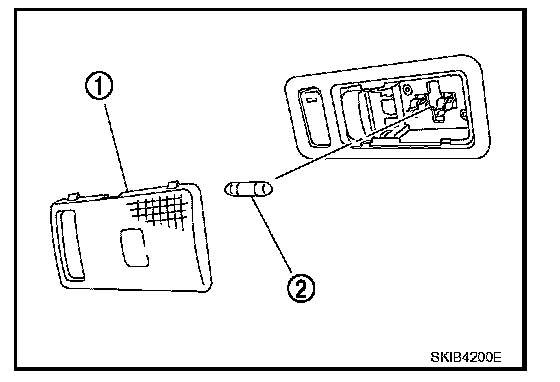

Map LampBULB REPLACEMENT
CAUTION: Disconnect the battery negative terminal or remove the fuse.
1. Remove lens (1) using clip driver or suitable tool.
2. Remove bulb (2).
Map lamp : 12 V - 8 W

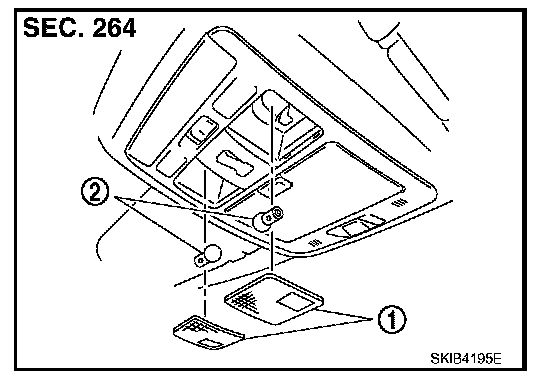

Personal Lamp
BULB REPLACEMENT
CAUTION: Disconnect the battery negative terminal or remove the fuse.
1. Insert a screwdriver or similar tool and remove lens (1).
2. Remove bulb (2).
Personal lamp : 12 V - 8 W

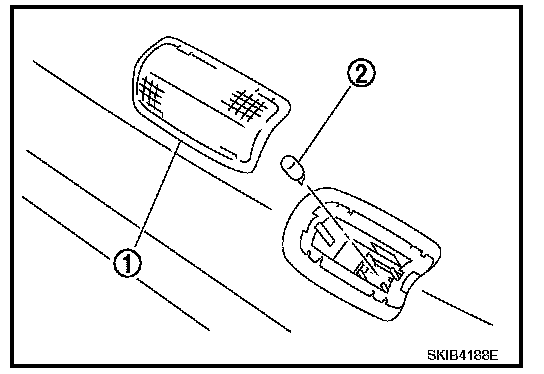

Foot Lamp (Driver Side)
BULB REPLACEMENT
CAUTION: Disconnect the battery negative terminal or remove the fuse.
1. Insert a screwdriver or similar tool and remove lens (1).
2. Remove bulb (2).
Foot lamp (Driver side) : 12 V - 3.4 W

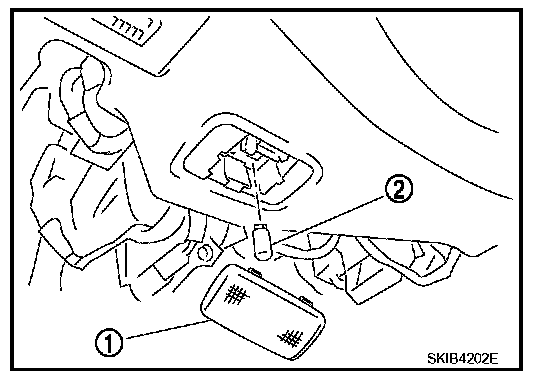

Foot Lamp (Passenger Side)
BULB REPLACEMENT
CAUTION: Disconnect the battery negative terminal or remove the fuse.
1. Insert a screwdriver or similar tool and remove lens (1).
2. Remove bulb (2).
Foot lamp (Passenger side) : 12 V - 3.4 W

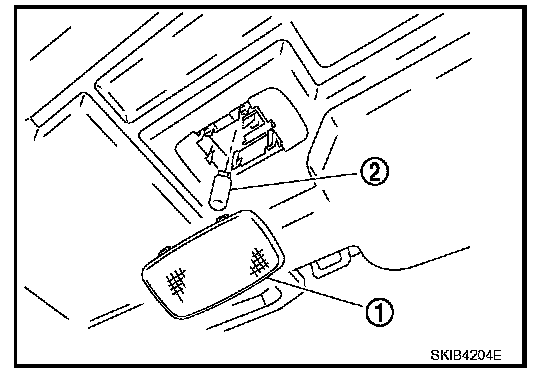

Vanity Mirror Lamp
BULB REPLACEMENT
CAUTION: Disconnect the battery negative terminal or remove the fuse.
1. Insert a thin screwdriver in the lens end and remove lens (1).
2. Remove bulb (2).
Vanity mirror lamp : 12 V - 1.8 W
STEP Lamp
BULB REPLACEMENT
CAUTION: Disconnect the battery negative terminal or remove the fuse.
1. Insert a screwdriver or similar tool and remove lens (1).
2. Remove bulb.
Step lamp : 12 V - 5 W
Kicking Plate Illumination
BULB REPLACEMENT
Replacement integral with front kicking plate inner.
