Ash Tray Lamp: Service and Repair

Cigarette Lighter Illumination

BULB REPLACEMENT, REMOVAL AND INSTALLATION

CAUTION: Disconnect the battery negative terminal or remove the fuse.

Removal
1. Remove A/T console finisher.

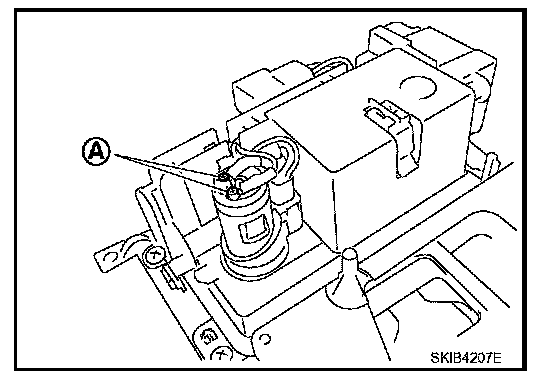

2. Remove screws (A).

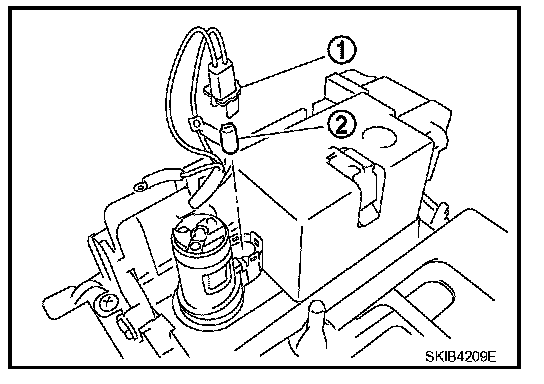

3. Use a screwdriver to undo hooks, remove bulb sockets (1).
4. Remove bulb (2).

Front ashtray and cigarette lighter illumination : 12 V - 1.4 W

Installation
Installation is the reverse order of removal.

Rear Ashtray Illumination

REMOVAL AND INSTALLATION

CAUTION: Disconnect the battery negative terminal or remove the fuse.

1. Remove rear door finisher.

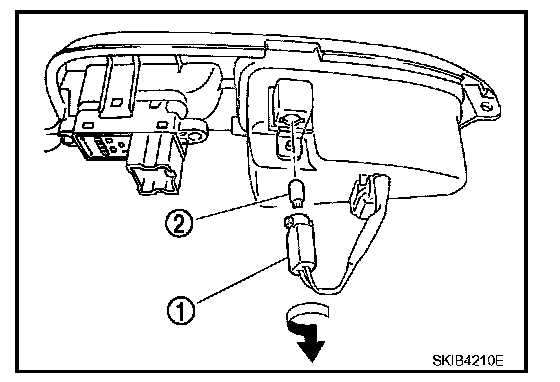

2. Turn rear ashtray illumination bulb socket (1) counterclockwise and unlock it.
3. Remove bulb (2).

Rear ashtray illumination : 12 V - 1.4 W

INSTALLATION
Installation is the reverse order of removal.
