Center Mounted Brake Lamp Bulb: Service and Repair

High-Mounted Stop Lamp

BULB REPLACEMENT, REMOVAL AND INSTALLATION
1. Remove rear parcel shelf finisher.
2. Turned over protection sheet and disconnect connector.

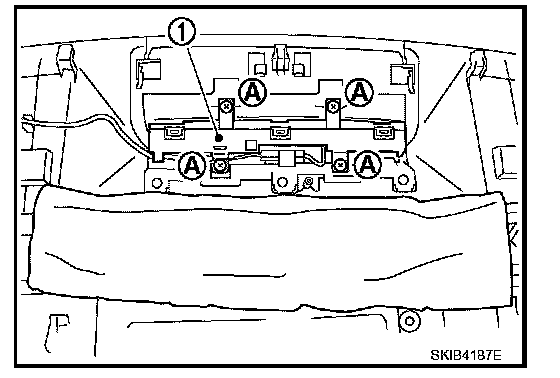

3. Remove screws (A) and remove high-mounted stop lamp (1) from rear parcel shelf finisher.

High-mounted stop lamp : LED
