Clock: Service and Repair
Removal and Installation of ClockREMOVAL

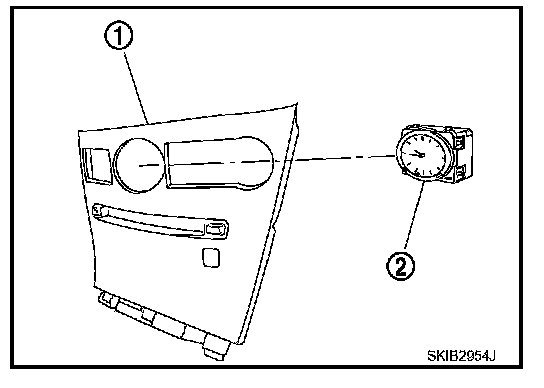

1. Remove cluster lid C (1).
2. Remove preset switch.
3. Disengage tabs, and remove clock (2) from cluster lid C (1).
INSTALLATION
Installation is the reverse order of removal.
REMOVAL
1. Remove cluster lid C (1).
2. Remove preset switch.
3. Disengage tabs, and remove clock (2) from cluster lid C (1).
INSTALLATION
Installation is the reverse order of removal.
