Home >> Infiniti >> 2008 >> M35 V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Testing and Inspection >> Component Tests and General Diagnostics >> Meter Buzzer Circuit Inspection

Meter Buzzer Circuit Inspection

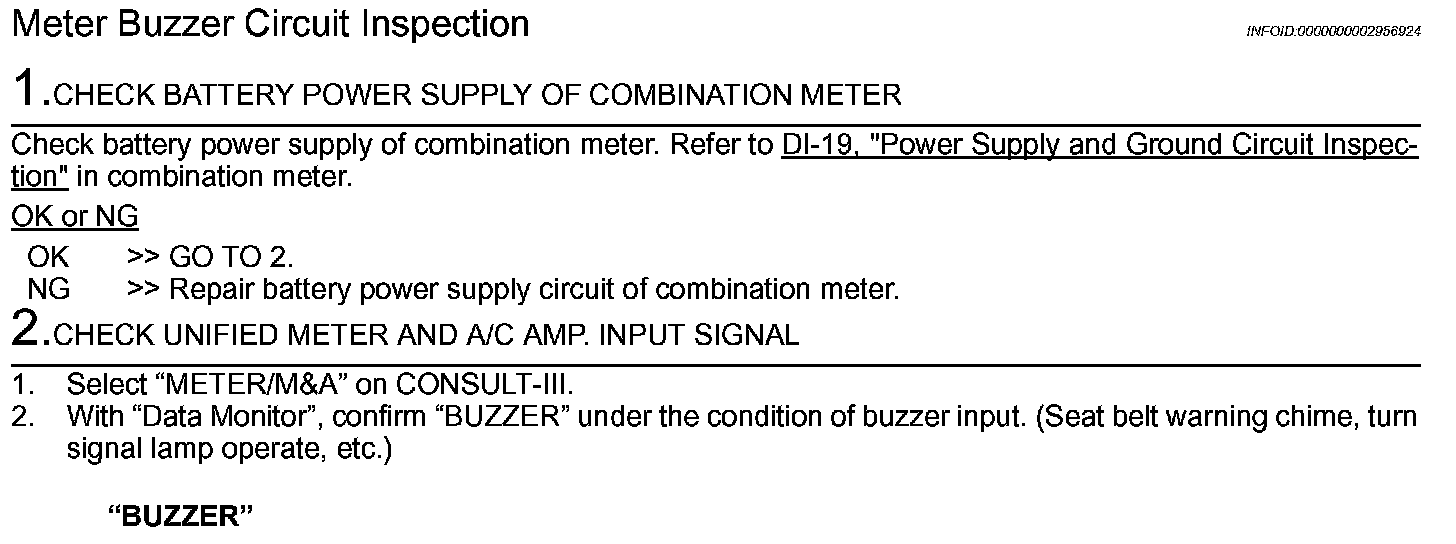

Step 1-2:

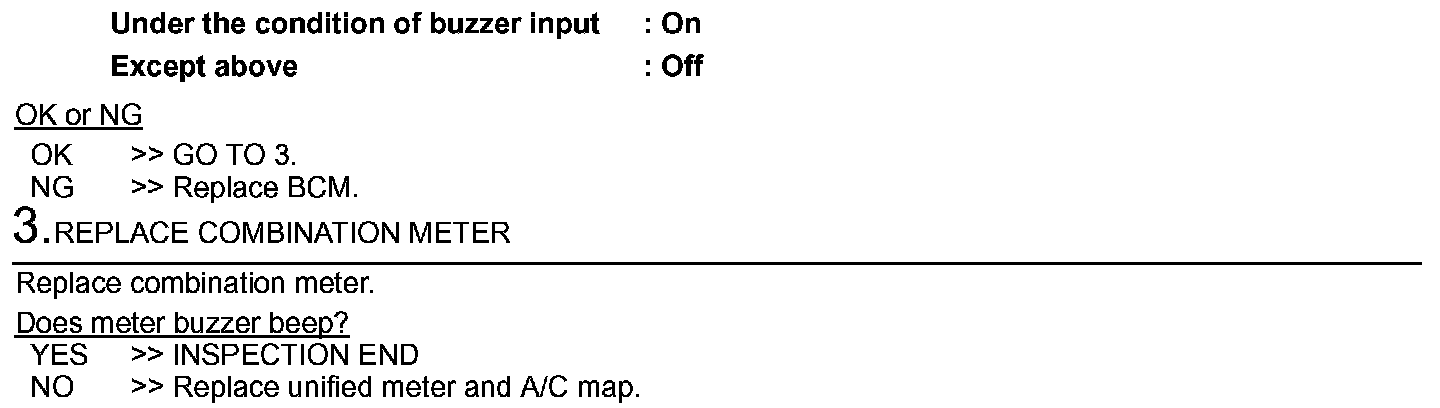

Step 2 (Continued)-3:
