Check Rear Heated Seat Switch Circuit

Check Rear Heated Seat Switch Circuit

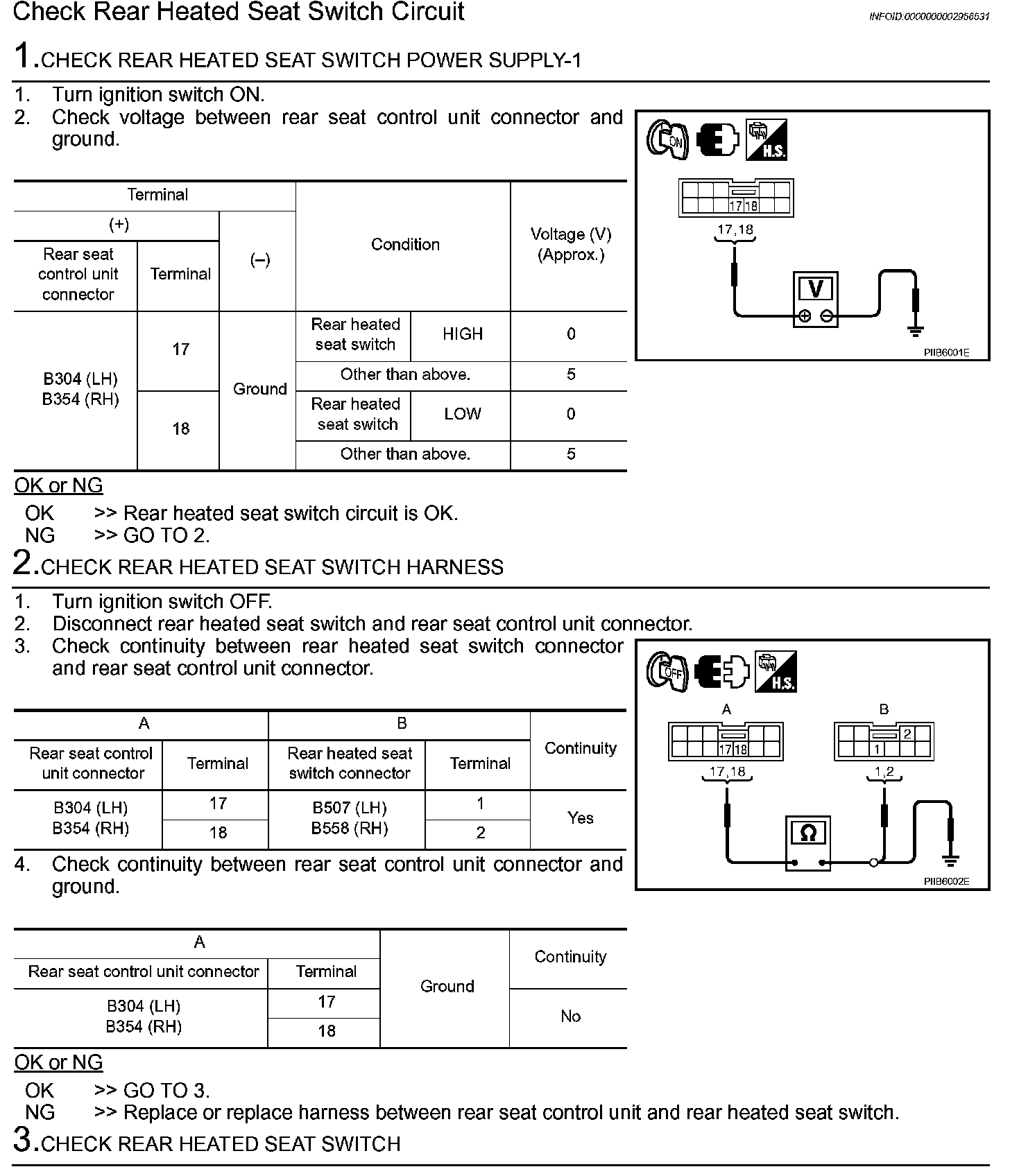

Step 1-3:

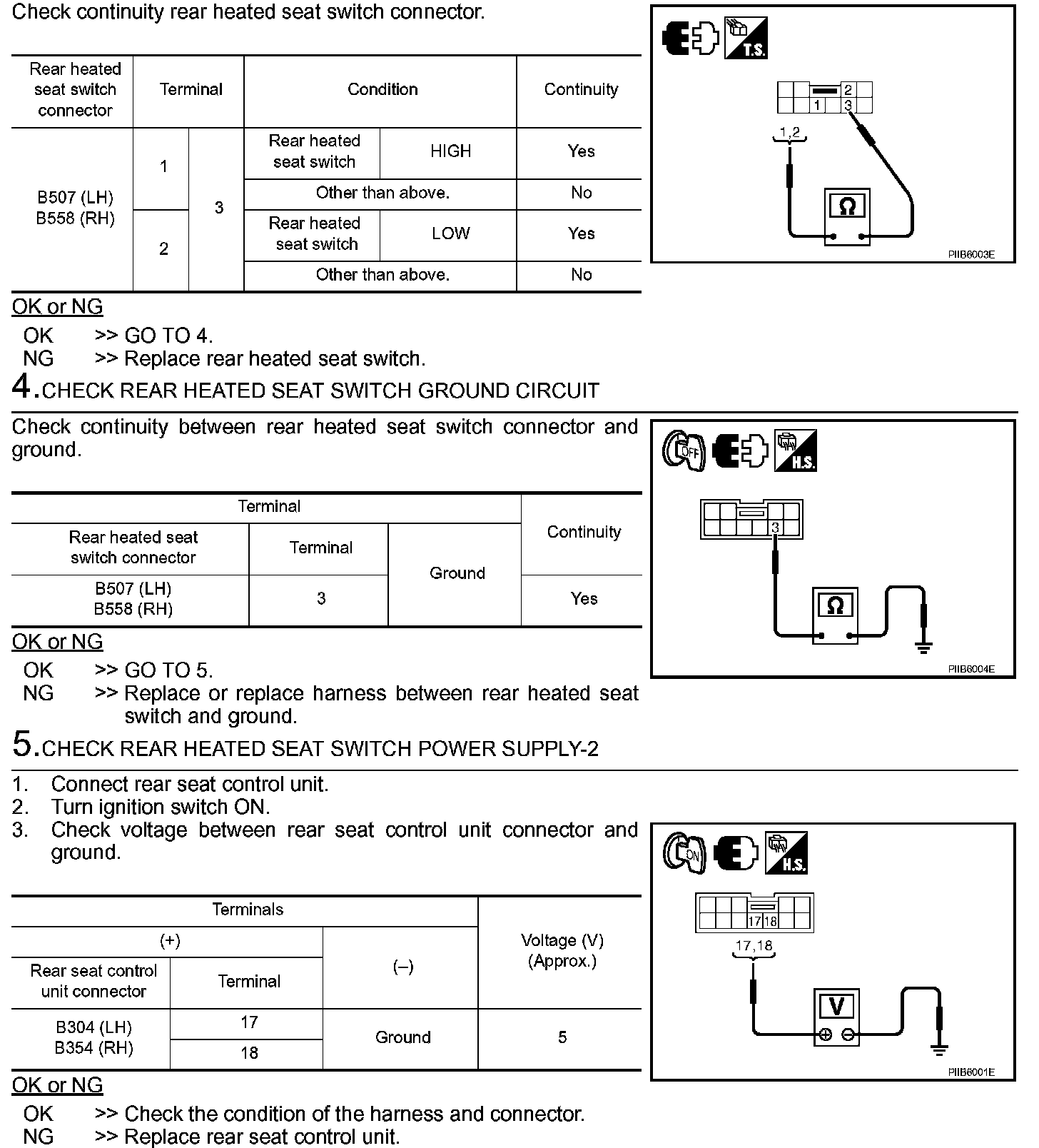

Step 3 (Continued)-5:
