Sports Type

REAR BUMPER

SPORTS TYPE : Removal and Installation

CAUTION: Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with oil.

REMOVAL
1. Fully open trunk lid assembly.
2. Remove rear combination lamp (LH/RH).

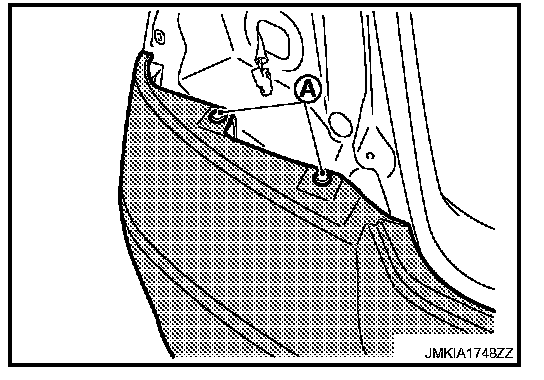

3. Remove clips (A) located under rear combination lamp (LH/RH).

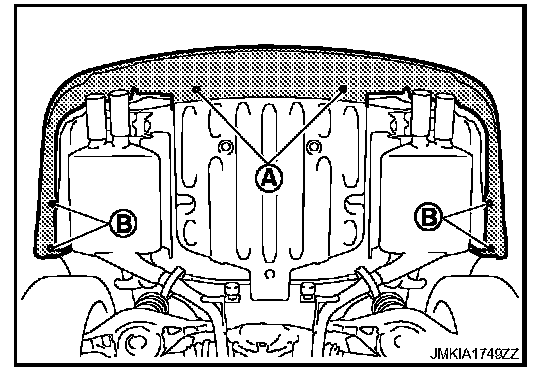

4. Remove clips (A) of rear bumper fascia under side.
5. Remove screws (B) of rear bumper fascia under side.

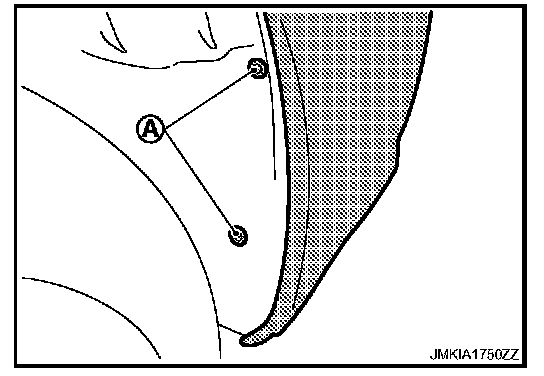

6. Remove clips (A) of rear wheel house protector rear end (LH/ RH).

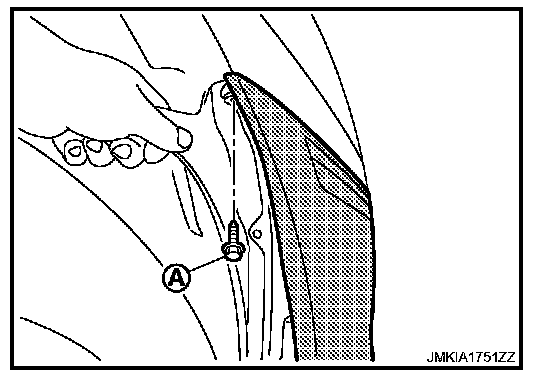

7. Remove screws (A) of rear bumper fascia left/right side.




8. Pull to release rear bumper from bumper side bracket.

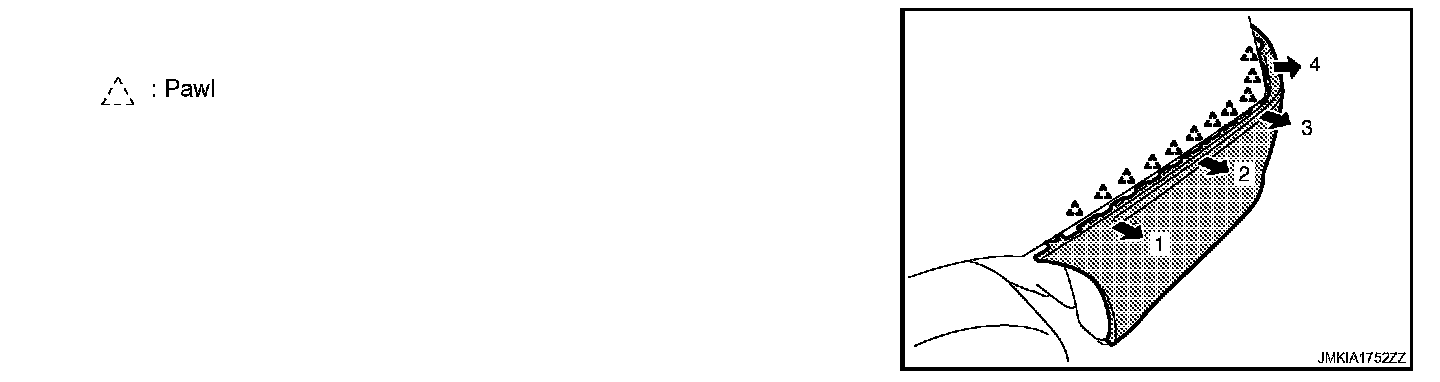

9. Remove bumper clip from rear bumper fascia upper side, and then pull out rear bumper fascia toward rear of vehicle.
10. Remove rear bumper fascia assembly.

CAUTION: When removing bumper fascia, 2 workers are required so as to prevent it from dropping.

11. Remove the following parts after removing rear bumper fascia assembly.
- Bumper side bracket A (LH/RH)
- Bumper side bracket B (LH/RH)

12. Remove bumper energy absorber.
13. Remove bumper reinforcement mounting nuts and bumper reinforcement with power tool.

INSTALLATION
Install in the reverse order of removal.

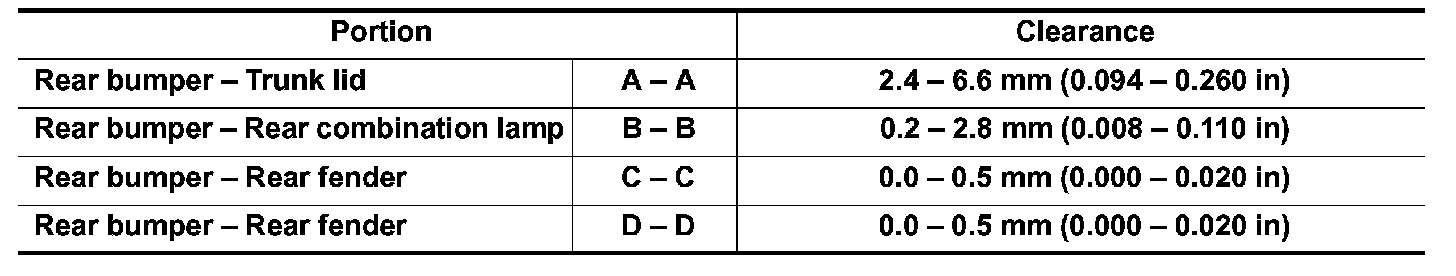

NOTE: After installing, perform fitting adjustment.
