Front Door Speaker
FRONT DOOR SPEAKERExploded View

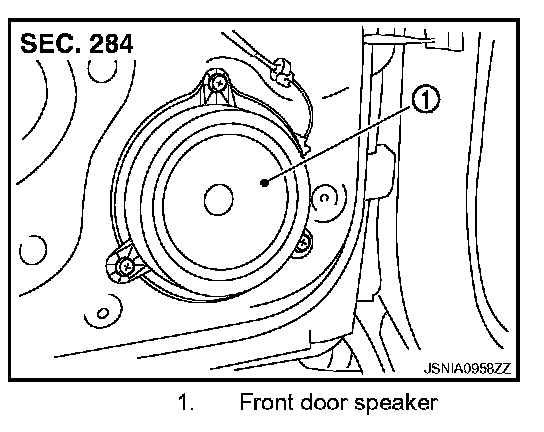

AV-484 Exploded View:
Removal and Installation
REMOVAL
1. Remove front door finisher.

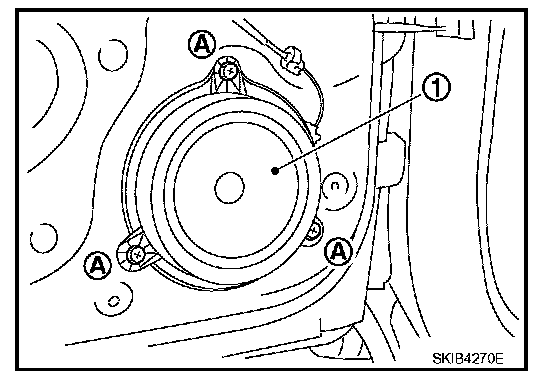

2. Remove screws (A) and remove front door speaker (1).
INSTALLATION
Install in the reverse order of removal.
Exploded View
Removal and Installation
REMOVAL
1. Remove front door finisher.
2. Remove screws (A) and remove front door speaker (1).
INSTALLATION
Install in the reverse order of removal.
