Seat Speaker

SEAT SPEAKER

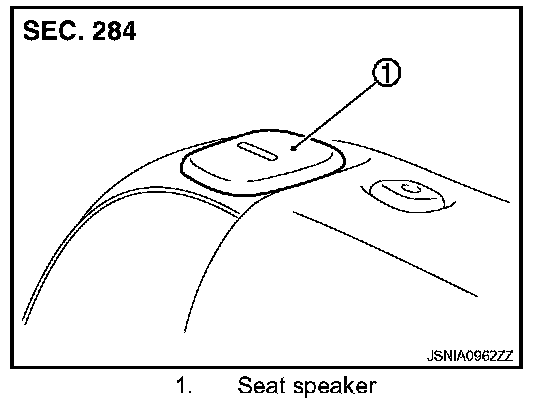

Exploded View

AV-488 Exploded View:

Removal and Installation

REMOVAL

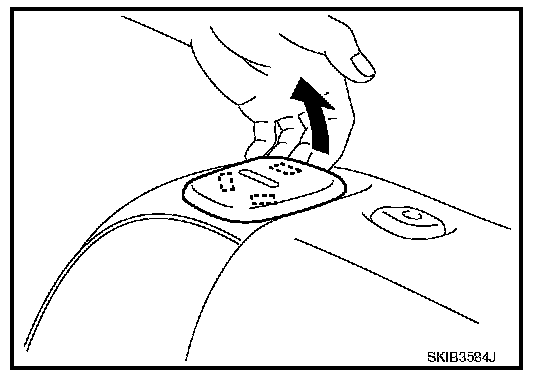

1. Remove seat speaker grill as shown in the figure.

CAUTION: Never reuse seat speaker grill. The pawl is broken when removing.

2. Remove front seat back trim and pad.

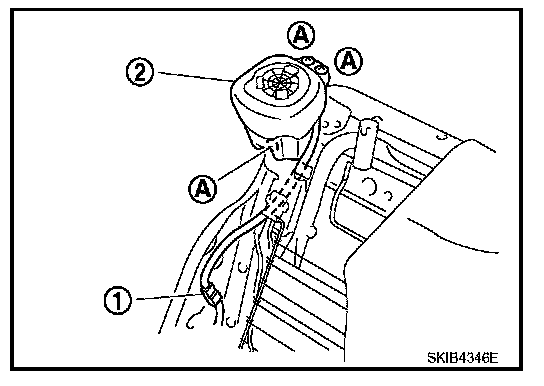

3. Remove screws (A) and disconnect connector (1).
4. Remove seat speaker (2).

INSTALLATION
Install in the reverse order of removal.
