Woofer

WOOFER

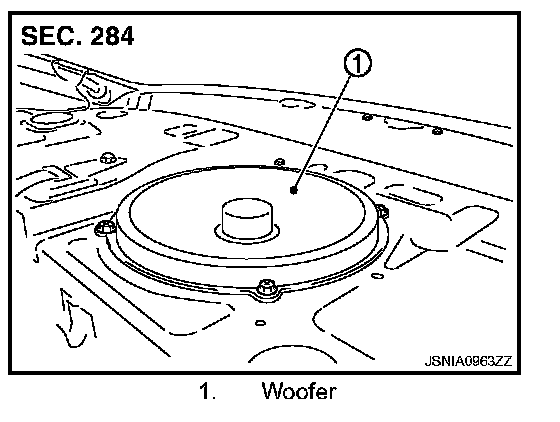

Exploded View

AV-489 Exploded View:






Removal and Installation

REMOVAL
1. Remove rear parcel shelf finisher.

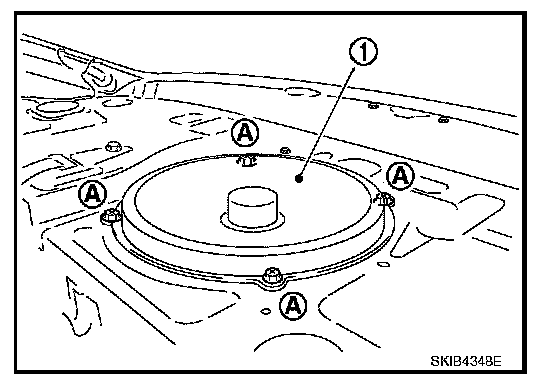

2. Remove screws (A) and disconnect connector.
3. Remove rear woofer (1) from rear parcel shelf.

INSTALLATION
Install in the reverse order of removal.
