Rear Door Speaker

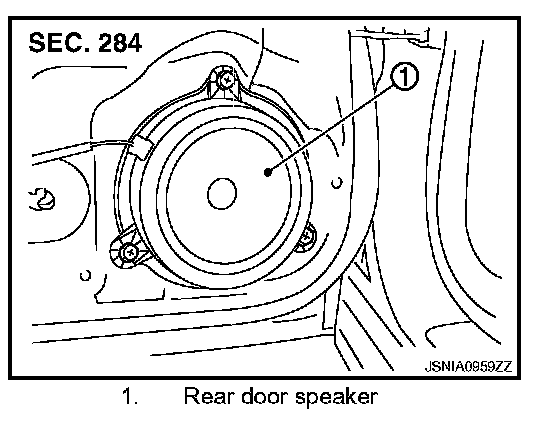

REAR DOOR SPEAKERExploded View
AV-1069 Exploded View:
Removal and Installation
REMOVAL
1. Remove rear door finisher.

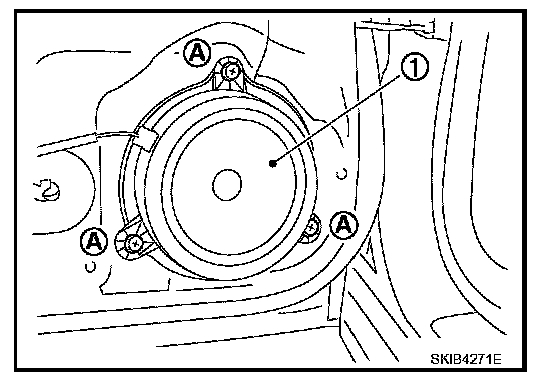

2. Remove screws (A) and remove rear door speaker (1).
INSTALLATION
Install in the reverse order of removal.
Exploded View
Removal and Installation
REMOVAL
1. Remove rear door finisher.
2. Remove screws (A) and remove rear door speaker (1).
INSTALLATION
Install in the reverse order of removal.
