Tweeter

TWEETER

Exploded View

Removal and Installation

REMOVAL
1. Remove front door finisher.
2. Remove door sash inner cover (front).

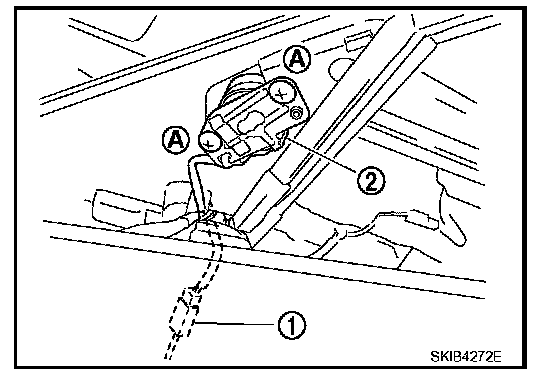

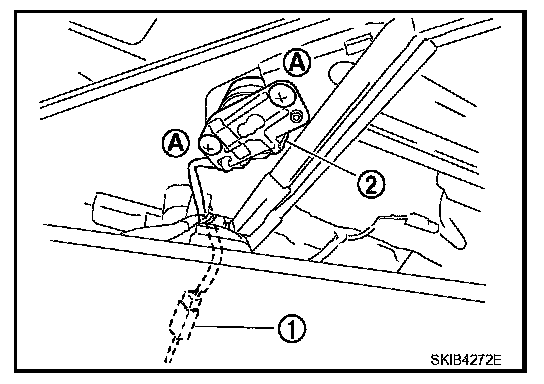

3. Remove screws (A), and disconnect connector (1).
4. Remove tweeter (2).

INSTALLATION
Install in the reverse order of removal.
