Center Speaker

CENTER SPEAKER

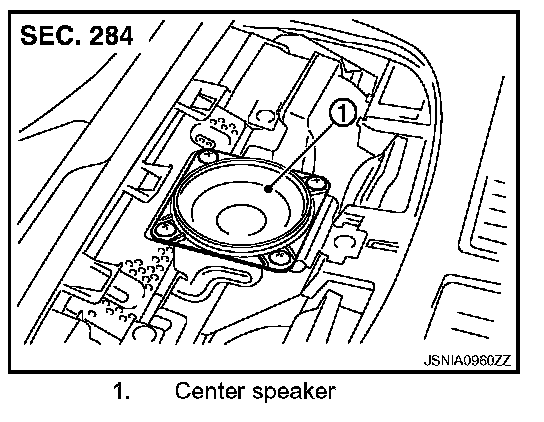

Exploded View

AV-1070 Exploded View:






Removal and Installation

REMOVAL
1. Remove upper ventilator grill.

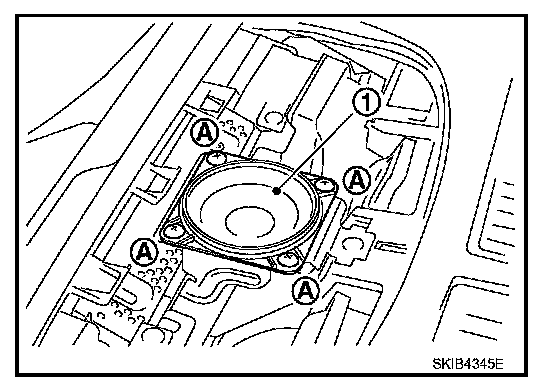

2. Remove screws (A) and disconnect connector.




3. Remove center speaker (1).

INSTALLATION
Install in the reverse order of removal.
