Radio Tuner: Service and Repair

SATELLITE RADIO TUNER

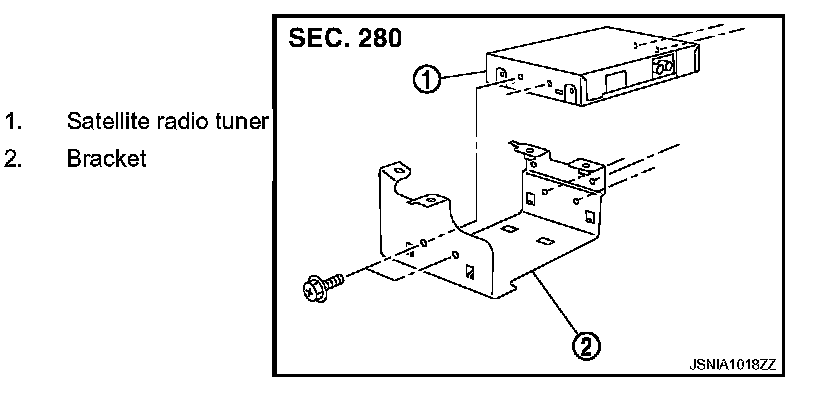

AV-506 Exploded View:

Exploded View

Removal and Installation

REMOVAL
1. Remove trunk front finisher.
2. Remove rear parcel shelf finisher.




3. Remove screws (A).

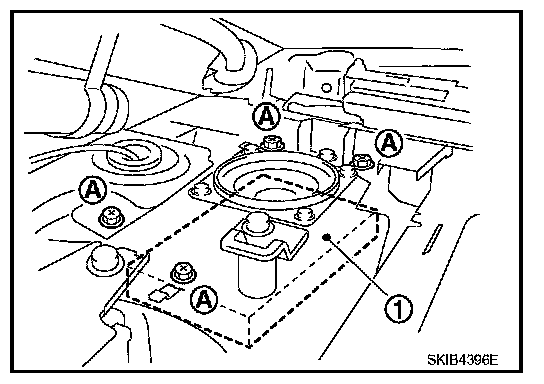

4. Disconnect connector and remove satellite radio tuner (1) from trunk room side.

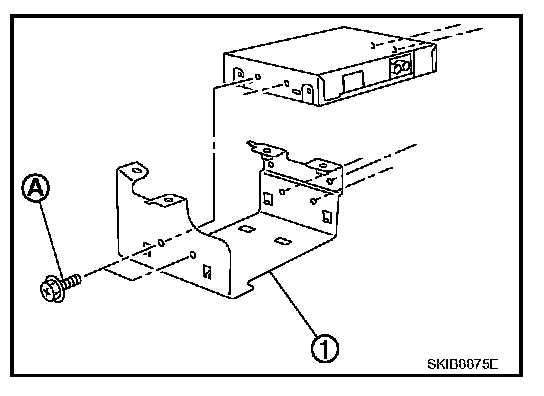

5. Disconnect screws (A) and remove bracket (1).

INSTALLATION
Installation is the reverse order of removal.
