Home >> Infiniti >> 2008 >> M35 V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Memory Positioning Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Check UART Communication Line Circuit

Check UART Communication Line Circuit

Check UART Communication Line Circuit

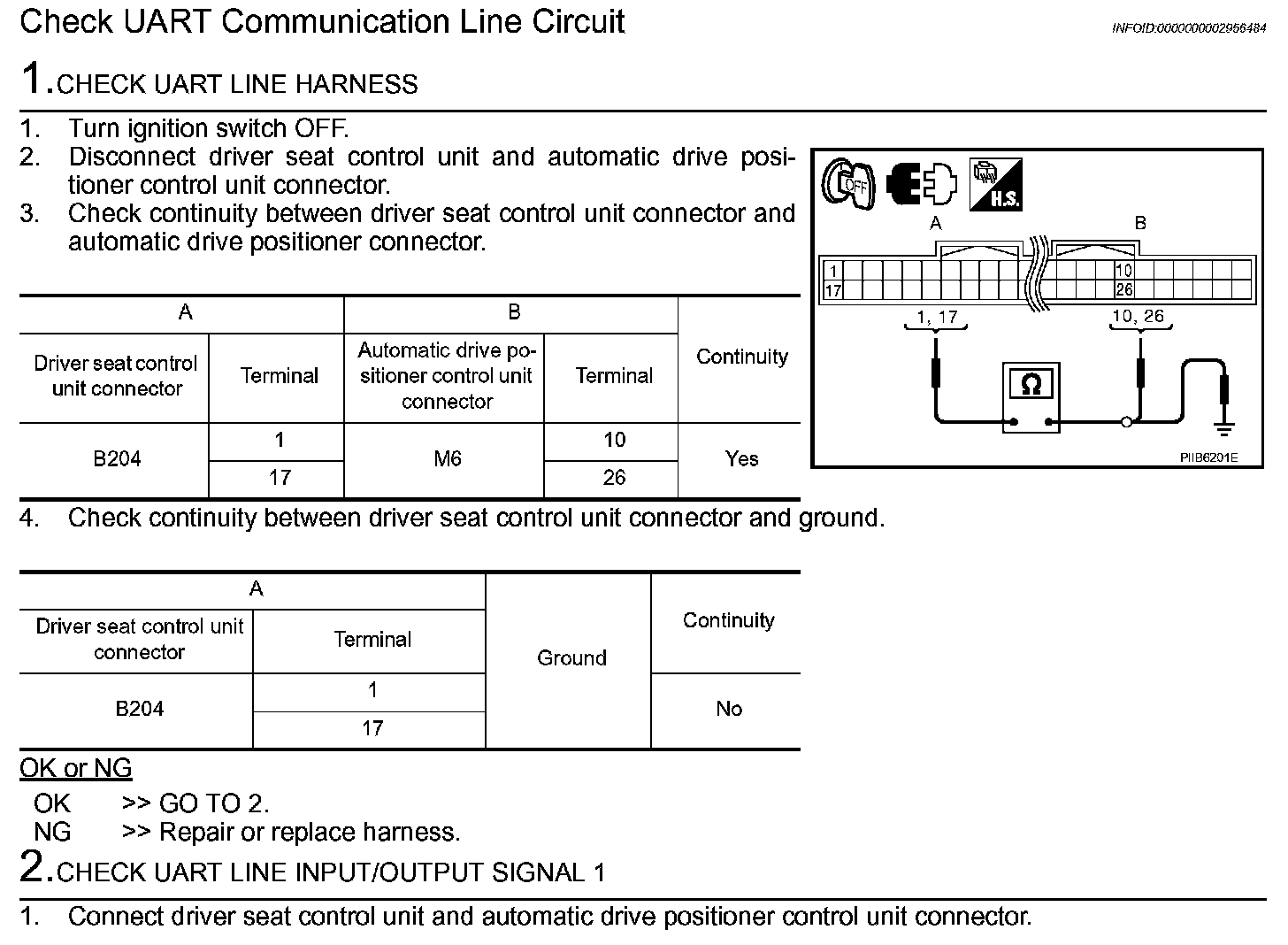

Step 1-2:

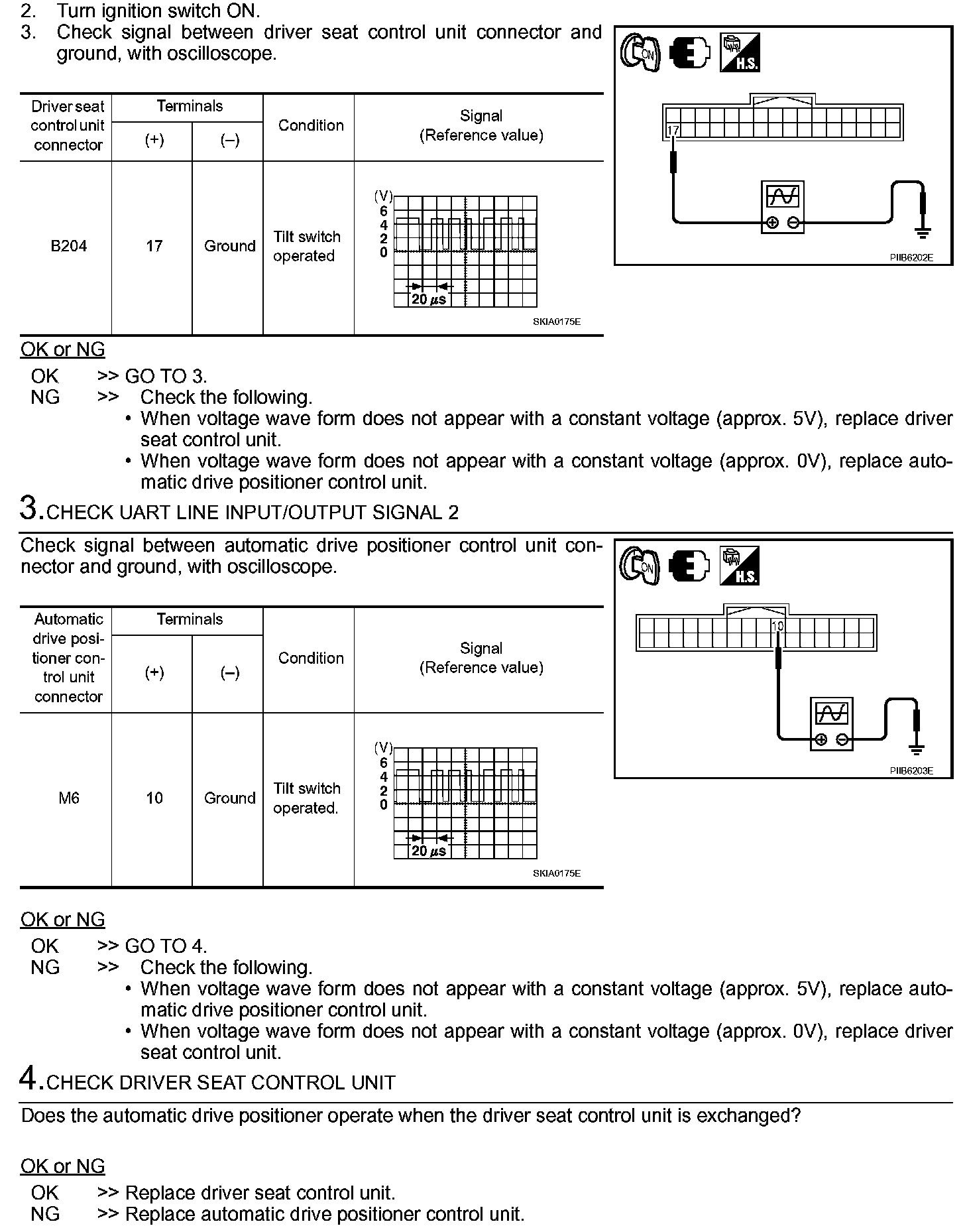

Step 2 (Continued)-4:
