DVD PLAYER

Exploded View

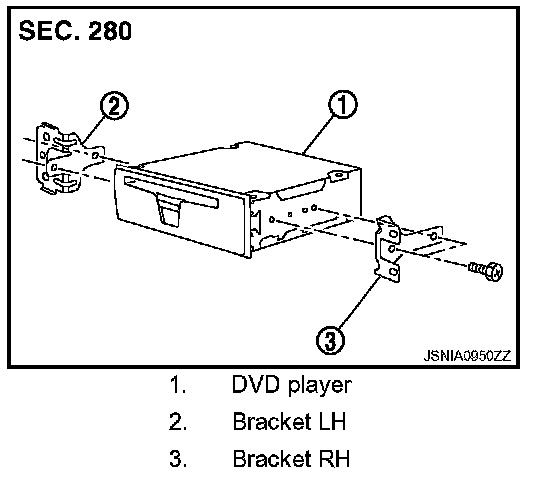

AV-1083 Exploded View:

Removal and Installation

REMOVAL
1. Remove cup holder.

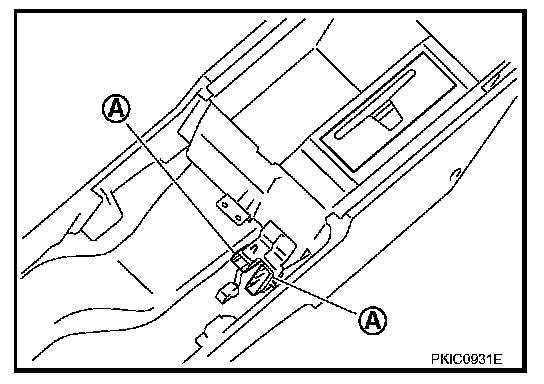

2. Disconnect sub harness connector.




3. Remove sub harness connectors (A) from bracket.

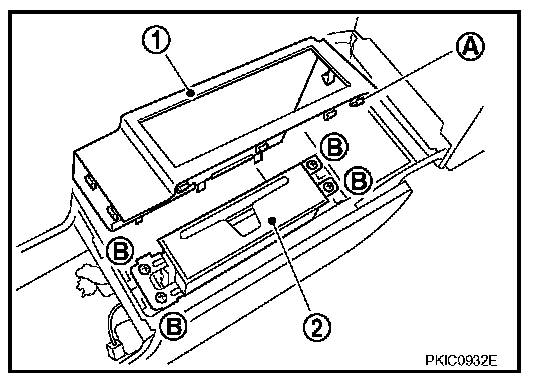

4. Remove metal clips (A) and 8 pawls. Then DVD player cover (1).
5. Remove screws (B) and remove DVD player (2).

INSTALLATION
Install in the reverse order of removal.
