Without Mobile Entertainment System

AUXILIARY INPUT JACKS

Removal and Installation

REMOVAL
1. Remove center console rear finisher.

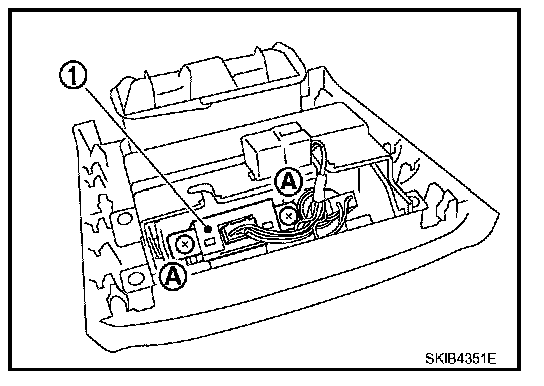

2. Remove screws (A) and disconnect connector. Remove auxiliary input jacks (1) from center console rear finisher.

INSTALLATION
Install in the reverse order of removal.
