With Mobile Entertainment System

REAR VIEW CAMERA

Removal and Installation

REMOVAL
1. Remove trunk lid finisher inner.
2. Remove screws attaching camera and camera bracket.
3. Remove connector and connector clip.

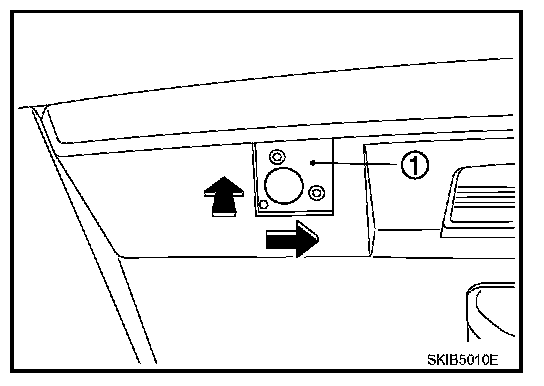

4. Remove camera bracket (1) while pushing right direction of vehicle.

INSTALLATION
1. Install rear view camera and camera bracket while pressing to trunk room side.
2. Install connector and connector clip.
3. Install trunk lid finisher inner.
