With Mobile Entertainment System

CAMERA CONTROL UNIT

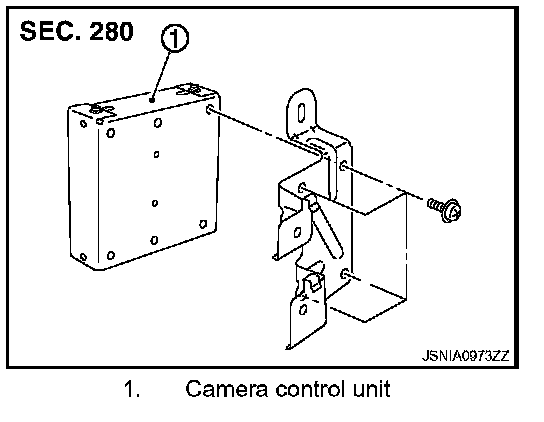

Exploded View

Removal and Installation

REMOVAL
1. Remove trunk side finisher (RH).

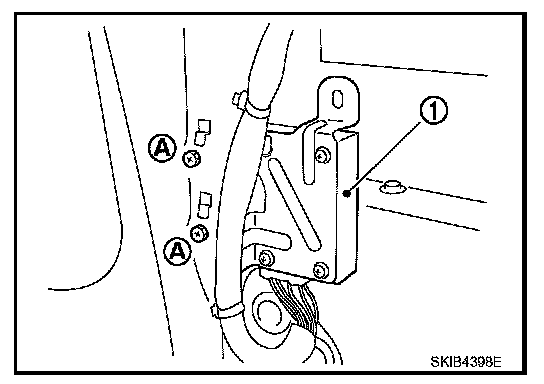

2. Remove screws (A) and disconnect connector, and remove camera control unit (1).

INSTALLATION
Install in the reverse order of removal.
