Audiopilot(R) Microphone

AUDIOPILOT(R) MICROPHONE

Removal and Installation

REMOVAL

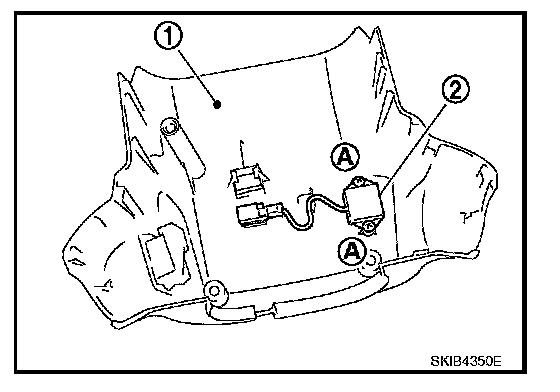

1. Remove steering column lower cover.




2. Remove screws (A) and disconnect connector.
3. Remove Microphone (2) from steering column lower cover (1).

INSTALLATION
Install in the reverse order of removal.
