Keyless Entry Transmitter Battery: Testing and Inspection

INTELLIGENT KEY BATTERY INSPECTION

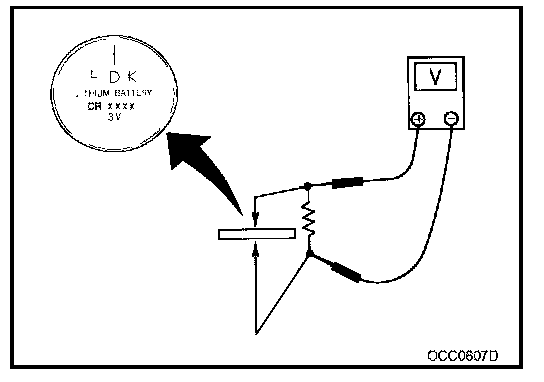

Check by connecting a resistance (approximately 300 ohms) so that the current value becomes about 10 mA.

Standard : Approx. 2.5 - 3.0 V
