Antenna, Phone: Service and Repair

TEL ANTENNA

Removal and Installation

REMOVAL
1. Remove TEL adapter unit.

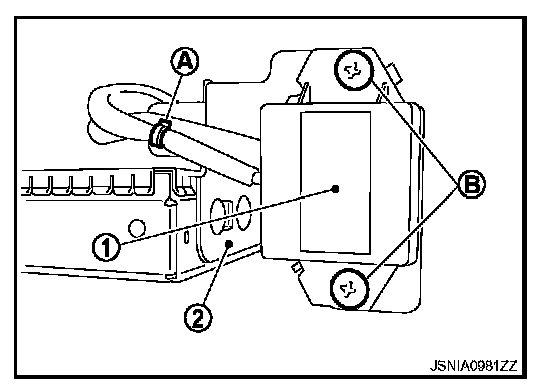

2. Remove clip (A), and disconnect connector.
3. Remove screws (B) from the TEL adapter unit bracket RH (2), and remove TEL antenna (1).

INSTALLATION
Install in the reverse order of removal.
