Without Mobile Entertainment System

ANTENNA AMP.

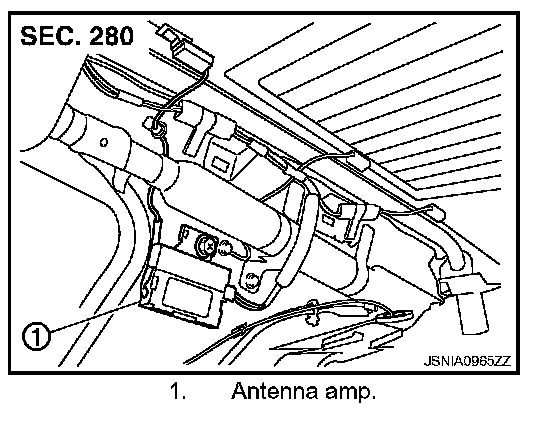

Exploded View

AV-492 Exploded View:

Removal and Installation

REMOVAL

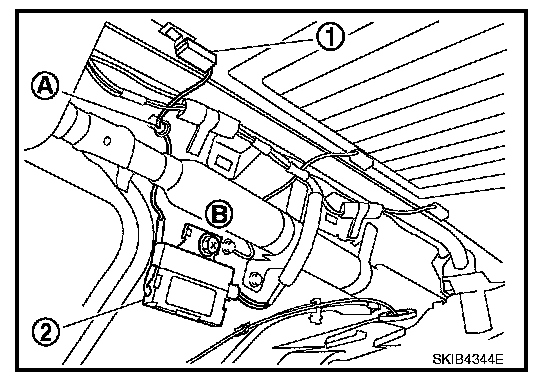

1. Remove back pillar garnish RH.




2. Disengaged the clip (A) to separate glass terminal (1).
3. Remove screw (B) and remove antenna amp. (2) from vehicle.

INSTALLATION
Install in the reverse order of removal.
