Front

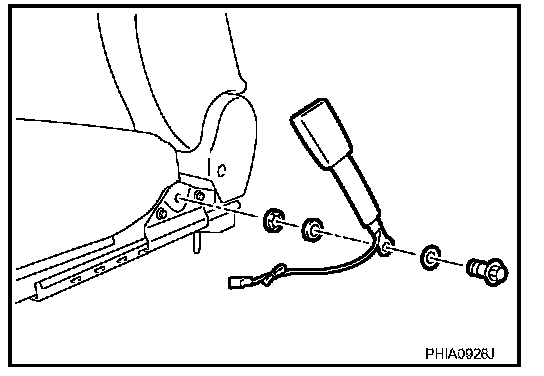

REMOVAL OF SEAT BELT BUCKLE
Remove the seat belt buckle.




- Remove the front seat from vehicle.
- Disconnect the seat belt buckle harness connector.
- Remove the fixing anchor bolt of the seat belt buckle.

INSTALLATION OF SEAT BELT BUCKLE
- Install in the reverse order of removal.
- Tighten by specified torque.

Tightening torque : 49.0 N.m (5.0 kg-m, 36 ft-lb)
