LATCH (Lower Anchors and Tether For Children) System

LATCH (LOWER ANCHORS AND TETHER FOR CHILDREN) SYSTEM

Removal and Installation

CAUTION: Replace anchor bolts if they are deformed or worn out.

REMOVAL




1. Remove the rear seat.
2. Remove rear seat frame (Models with rear power seat).

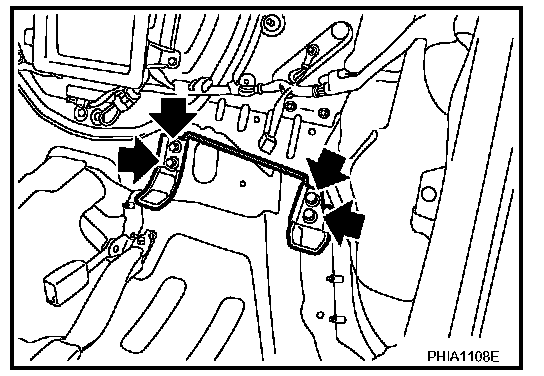

3. Remove LATCH (Lower Anchor and Tether for Children) system.

INSTALLATION
- Install in the reverse order of removal.
- Tighten by specified torque.

Tightening torque : 28.0 N.m (2.9 kg-m, 21 ft-lb)
