Top Tether Strap Child Restraint

TOP TETHER STRAP CHILD RESTRAINT

Removal and Installation

CAUTION: Replace anchor bolts if they are deformed or worn out.

REMOVAL

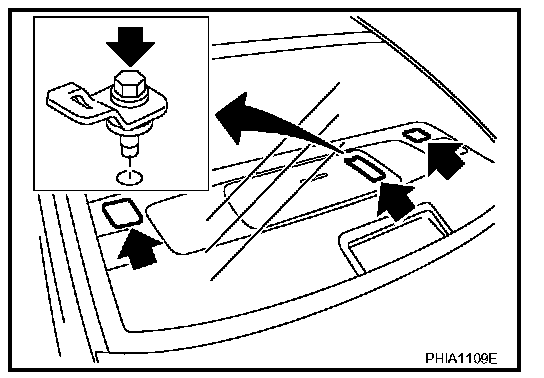

1. Remove the top tether strap child restraint cover.
2. Remove the top tether strap child restraint.

INSTALLATION
- Install in the reverse order of removal.
- Tighten by specified torque.

Tightening torque : 30.0 N.m (3.1 kg-m, 22 ft-lb)
