Front Passenger Air Bag Module

FRONT PASSENGER AIR BAG MODULE

Removal and Installation

REMOVAL

CAUTION:
- Before servicing, turn ignition switch OFF, disconnect both battery terminals and wait at least 3 minutes.
- Do not use air tools or electric tools for servicing.
- Always work from the side of air bag module. Do not work from the front of it.
- Always place air bag module with pad side facing upward.
- Do not use old fixing bolts after removal; replace with new bolts.
- Do not make an impact to the air bag module by dropping etc. Replace the air bag module if it has been dropped or sustained an impact.




1. Remove the instrument panel & pad assemblies.

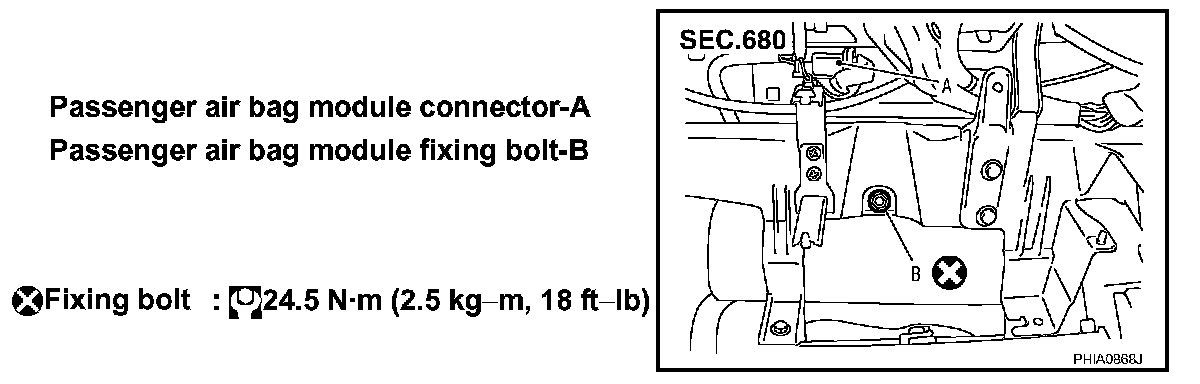

NOTE: The figure shows installed condition of the front passenger air bag module. (Under view of the module installed without glove box cover.)

2. Remove the front passenger air bag module from the instrument panel & pad assemblies.




- Remove the 2 screws.

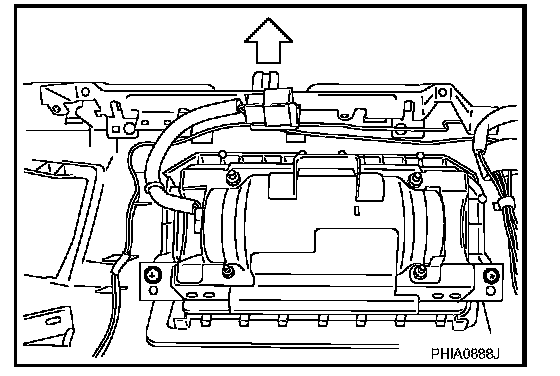

- Remove the air bag from the rear side hook. (<--- shows the backward direction of the vehicle.)

INSTALLATION
Install in the reverse order of removal.

CAUTION:
- Be careful not to damage the harness while installing.
- In case that malfunction is detected by the air bag warning lamp, reset by the self-diagnosis function and delete the memory by CONSULT-III.
- In case that malfunction is still detected after the above operation, perform self-diagnosis to repair malfunctions.
- After the work is completed, check that no system malfunction is detected by air bag warning lamp. Refer to SRS-22, "SRS Operation Check (USER MODE)". Component Tests and General Diagnostics
