Blower Motor

BLOWER MOTOR

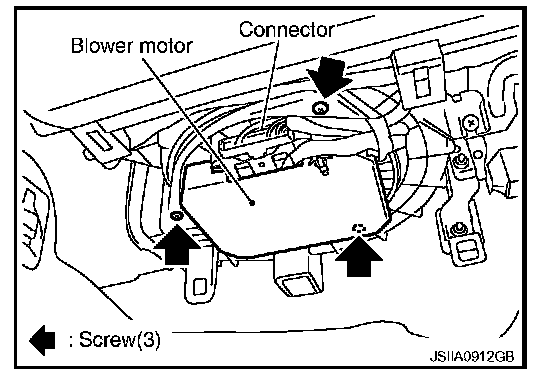

Removal and Installation

REMOVAL
1. Remove instrument passenger lower cover.




2. Disconnect blower motor connector.
3. Remove mounting screws, and then remove blower motor.

INSTALLATION
Installation is basically the reverse order of removal
