Intake Door Motor

INTAKE DOOR MOTOR

Removal and Installation

REMOVAL
1. Remove ECM with bracket attached.

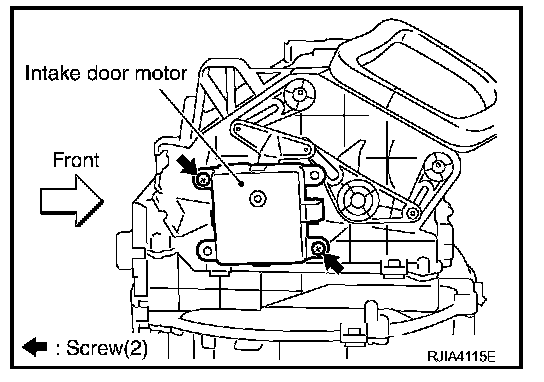

2. Remove mounting screws, and then remove intake door motor from blower unit.
3. Disconnect intake door motor connector.

INSTALLATION
Installation is basically the reverse order of removal.
