Mode Door Motor

MODE DOOR MOTOR

Removal and Installation

REMOVAL

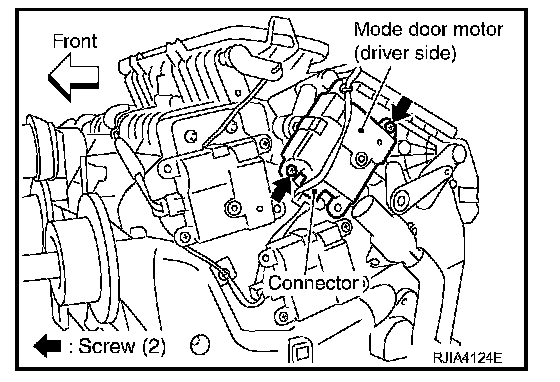

Driver Side
1. Remove heater & cooling unit assembly.




2. Remove mounting screws, and then remove mode door motor.
3. Disconnect mode door motor connector.

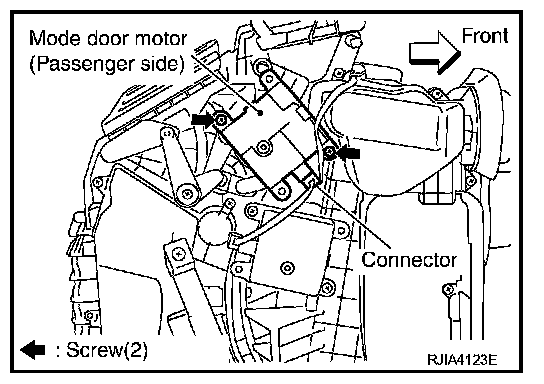

Passenger Side
1. Remove blower unit.




2. Remove mounting screws, and then remove mode door motor.
3. Disconnect mode door motor connector.

INSTALLATION
Installation is basically the reverse order of removal.
