Air Mix Door Motor

AIR MIX DOOR MOTOR

Removal and Installation

REMOVAL

Driver Side
1. Set the temperature control switch (driver side) at 18 °C (60 °F), and then disconnect the battery cable from the negative terminal.
2. Remove heater & cooling unit assembly.

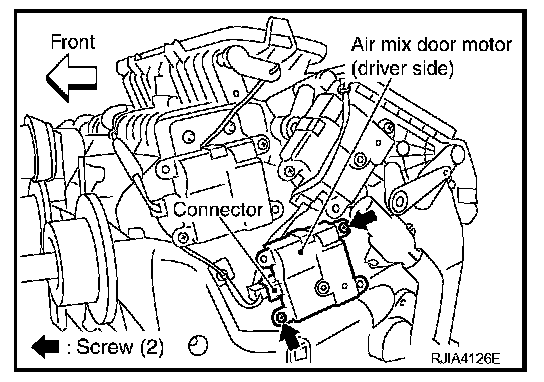

3. Remove mounting screws, and then remove air mix door motor.
4. Disconnect air mix door motor connector.

Passenger Side
1. Set the temperature control switch (passenger side) at 18 °C (60 °F), and then disconnect the battery cable from the negative terminal.
2. Remove blower unit.

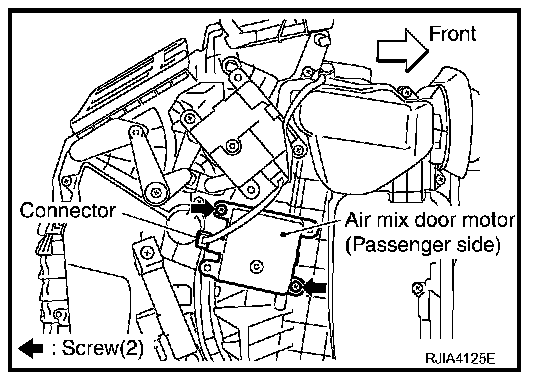

3. Remove mounting screws, and then remove air mix door motor.
4. Disconnect air mix door motor connector.

INSTALLATION
Installation is basically the reverse order of removal.
