Upper Ventilator Door Motor

UPPER VENTILATOR DOOR MOTOR

Removal and Installation

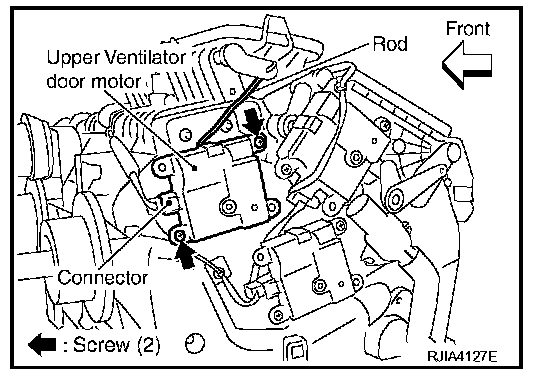

REMOVAL
1. Remove heater & cooling unit assembly.




2. Remove mounting screws.
3. Disconnect upper ventilator door motor connector.
4. Disconnect upper ventilator door rod, and then remove upper ventilator door motor.

INSTALLATION
Installation is basically the reverse order of removal
