Steering Wheel: Service and Repair
Removal and InstallationREMOVAL
NOTE: When reconnecting spiral cable, fix cable with a tape so that fixing case and rotating part keep aligned. This will omit neutral position alignment procedure during spiral cable installation.
1. Set vehicle to the straight-ahead position.
2. Remove driver air bag module.
3. Remove steering wheel lock nut after steering is locked.

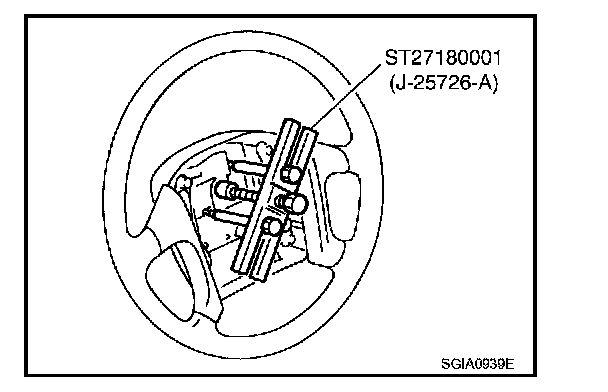

4. Remove steering wheel with the steering wheel puller [SST].
INSTALLATION
Installation is the reverse order of removal.
NOTE: Check the spiral cable neutral position after replacing or rotating spiral cable.
CAUTION: Do not twist spiral cable freely on excessively after it becomes tight (doing so may cause the cable to be turn off).
