Rear Wheel Steering Actuator: Locations

REAR ACTIVE STEER

Removal and Installation

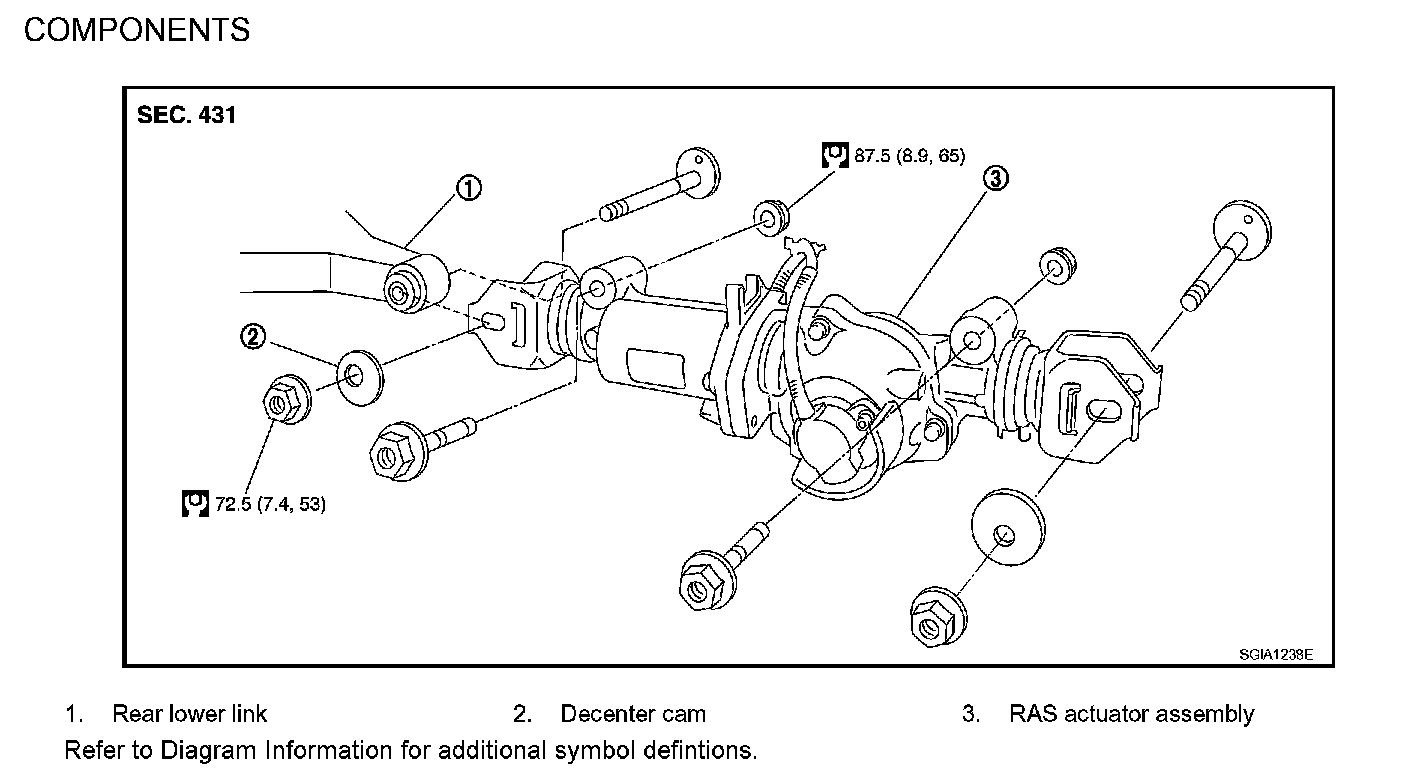

STC-13 COMPONENTS:

REMOVAL
1. Remove coil spring.
2. Disconnect harness connector from RAS actuator assembly and rear suspension member.

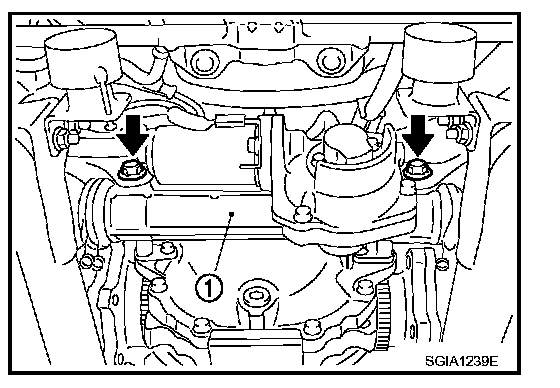

3. Remove fixing bolts and nuts of RAS actuator assembly (1), and then remove RAS actuator assembly (1) from rear suspension member.

INSTALLATION
^ Installation is the reverse order of removal. For tightening torque, refer to "COMPONENTS".
^ When installing RAS actuator assembly to rear suspension member, check the mounting surfaces of RAS actuator assembly and rear suspension member for oil, dirt, sand, or other foreign materials.
^ To perform the neutral position adjustment. Refer to BRC-8, "Adjustment of Steering Angle Sensor Neutral Position". Testing and Inspection
