Steering Angle Sensor: Service and Repair

Removal and Installation

REMOVAL
1. Remove spiral cable assembly.

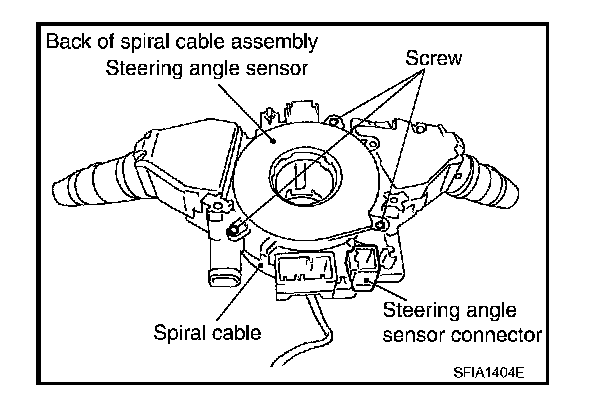

2. Remove steering angle sensor from spiral cable assembly.

INSTALLATION
Installation is the reverse order of removal.

CAUTION: After work, make sure to adjust neutral position of steering angle sensor. Refer to, "Adjustment of Steering Angle Sensor Neutral Position". Testing and Inspection
