Front

Removal and Installation of Front Brake Tube and Brake Hose

REMOVAL
1. Drain brake fluid.
2. Disconnect brake hose from brake tube, using a flare nut wrench.





3. Remove union bolt and remove brake hose from caliper assembly.
4. Remove lock plate and remove brake hose from vehicle.

INSTALLATION
1. Assemble the union bolt and copper washer to the brake hose.

CAUTION: Do not reuse copper washer.

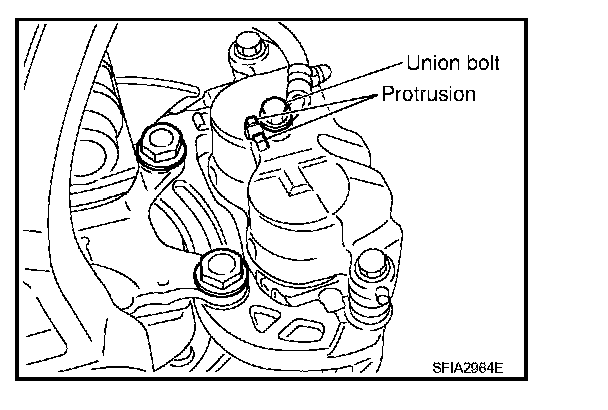

2. Install brake hose by aligning with the protrusion on brake caliper assembly, and tighten union bolt to the specified torque. Refer to, "Hydraulic Circuit". Diagrams
3. Connect brake hose to brake tube, partially tighten flare nut by hand as much as possible, then secure it to the bracket with lock plate.
4. Using a flare nut torque wrench, tighten flare nut to the specified torque. Refer to, "Hydraulic Circuit". Diagrams
5. Refill brake fluid and bleed air.
