Front

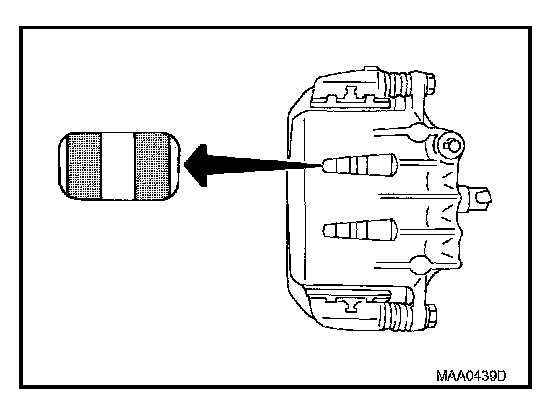

PAD WEAR INSPECTION





^ Check pad thickness from an inspection hole on cylinder body. Check using a scale if necessary.
Standard thickness: 11.0 mm (0.433 in)
Repair limit thickness: 2.0 mm (0.079 in)
