Yaw Rate Sensor: Service and Repair

G SENSOR

Removal and Installation

CAUTION:
^ Do not drop or strike yaw rate/side G sensor, because it has little endurance to impact.
^ Do not use power tool etc., because yaw rate/side G sensor is sensitive for the impact.

REMOVAL





1. Remove center console.
2. Disconnect yaw rate/side G sensor harness connector.

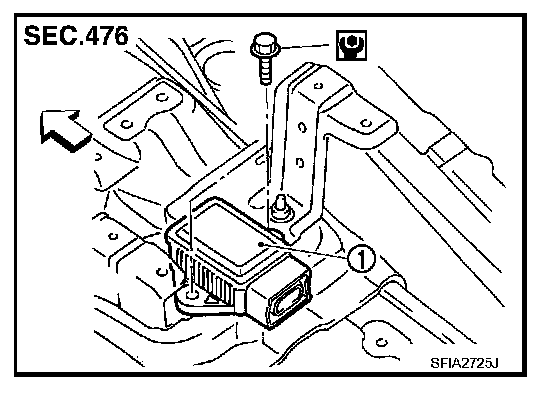

3. Remove mounting bolts. Remove yaw rate/side G sensor (1).

INSTALLATION
Installation is the reverse order of removal.
Yaw rate/side G sensor mounting bolt
Tightening torque: 6.5 Nm (0.66 kg-m, 58 lb-in)
