Ignition Coil: Service and Repair

Removal and Installation

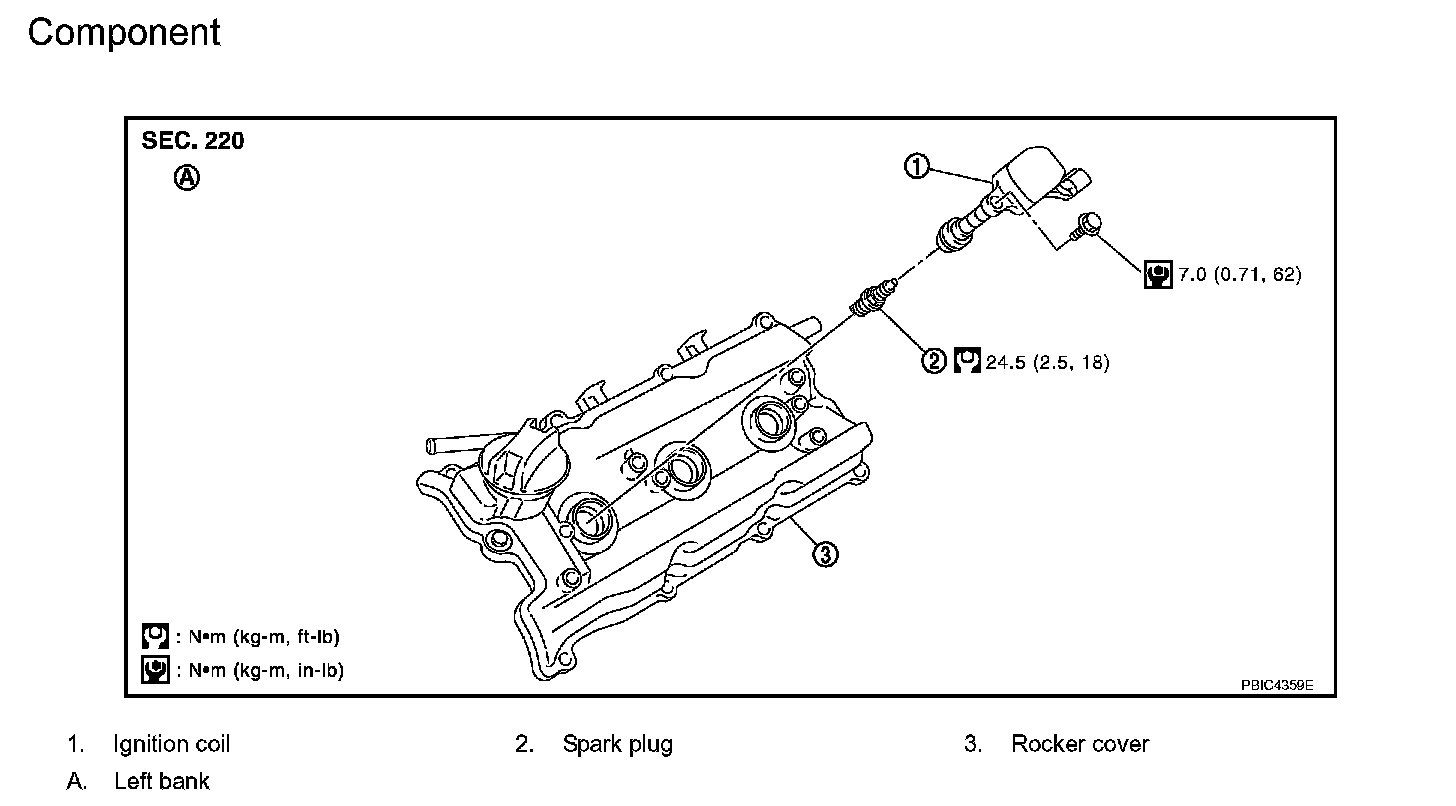

EM-42 Component:

REMOVAL
1. Remove engine room cover (RH and LH).
2. Remove engine cover with power tool.
3. Remove air duct (inlet) and air duct (at the left bank side, remove ignition coil).
4. Move aside harness, harness bracket, and hoses located above ignition coil.
5. Disconnect harness connector from ignition coil.
6. Remove ignition coil.

CAUTION: Never shock ignition coil.

INSTALLATION
Installation is the reverse order of removal.
