CAN System Specification Chart

FUNCTION DIAGNOSIS

CAN COMMUNICATION SYSTEM

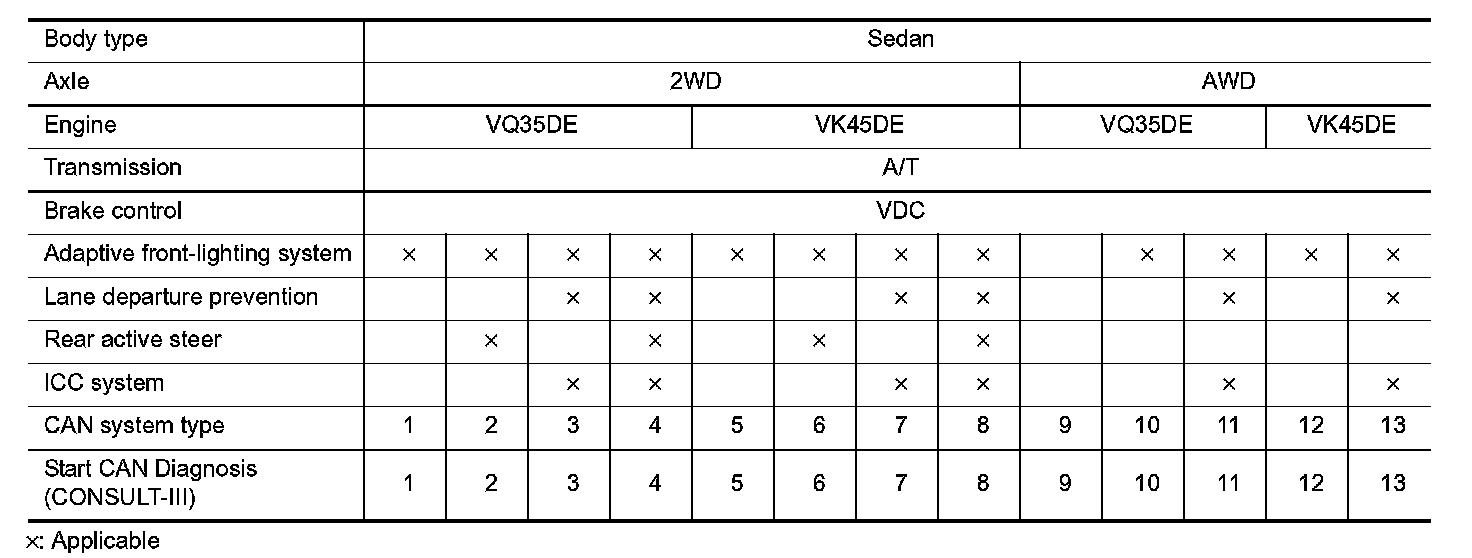

CAN System Specification Chart
Determine CAN system type from the following specification chart.

NOTE: Refer to LAN-20, "Trouble Diagnosis Procedure" for how to use CAN system specification chart. Diagnosis and Repair Workflow

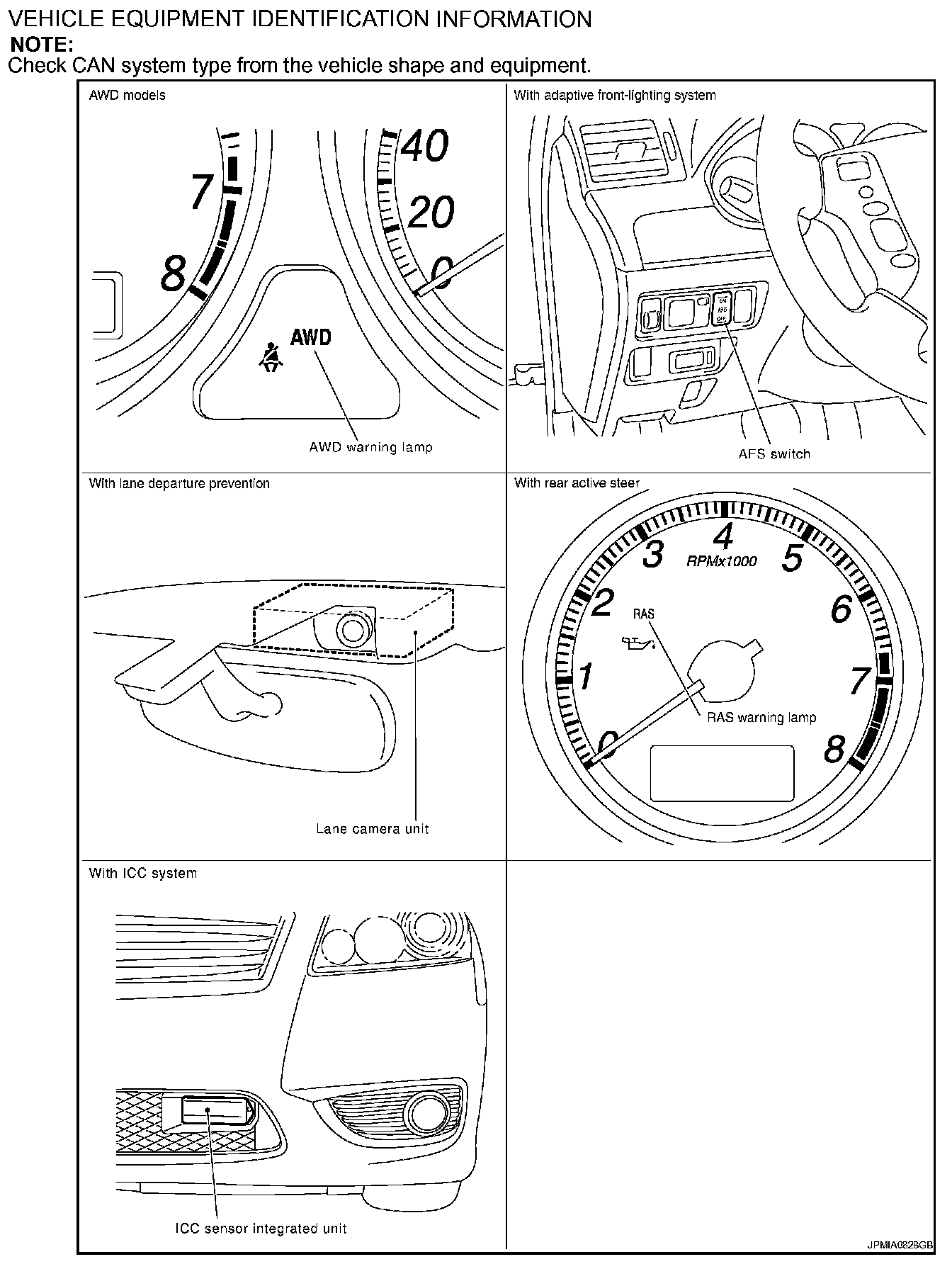

VEHICLE EQUIPMENT IDENTIFICATION INFORMATION
