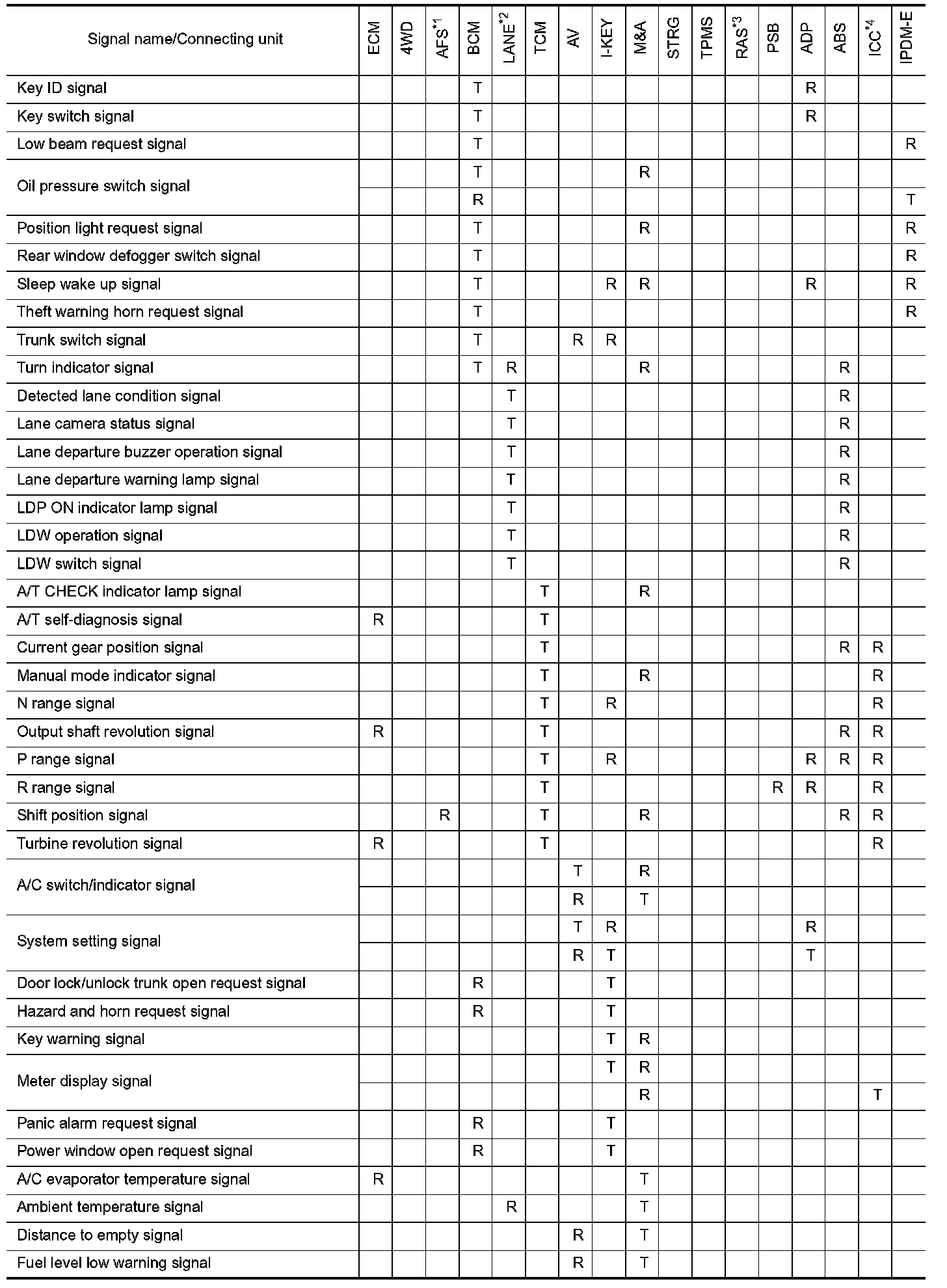

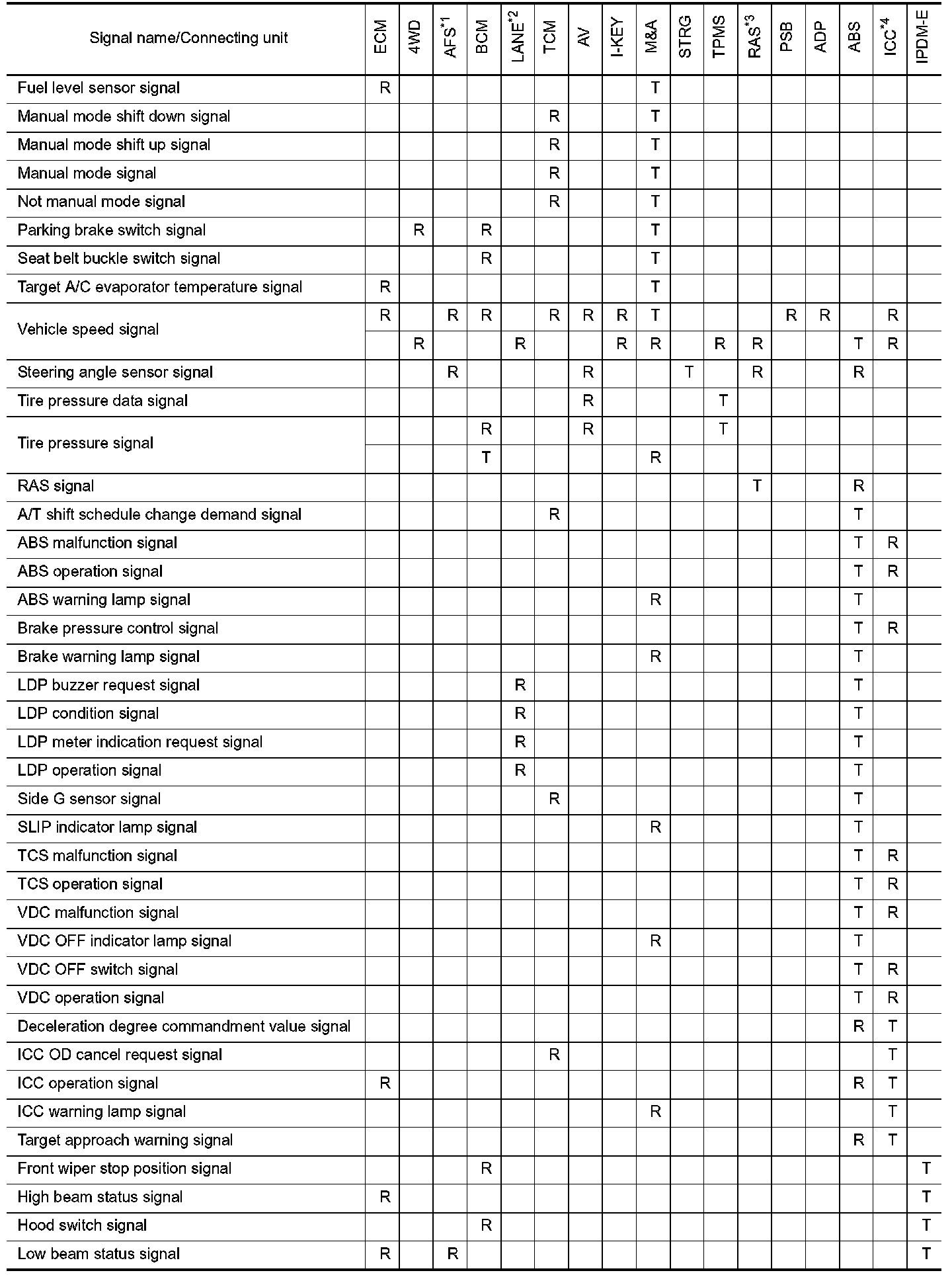

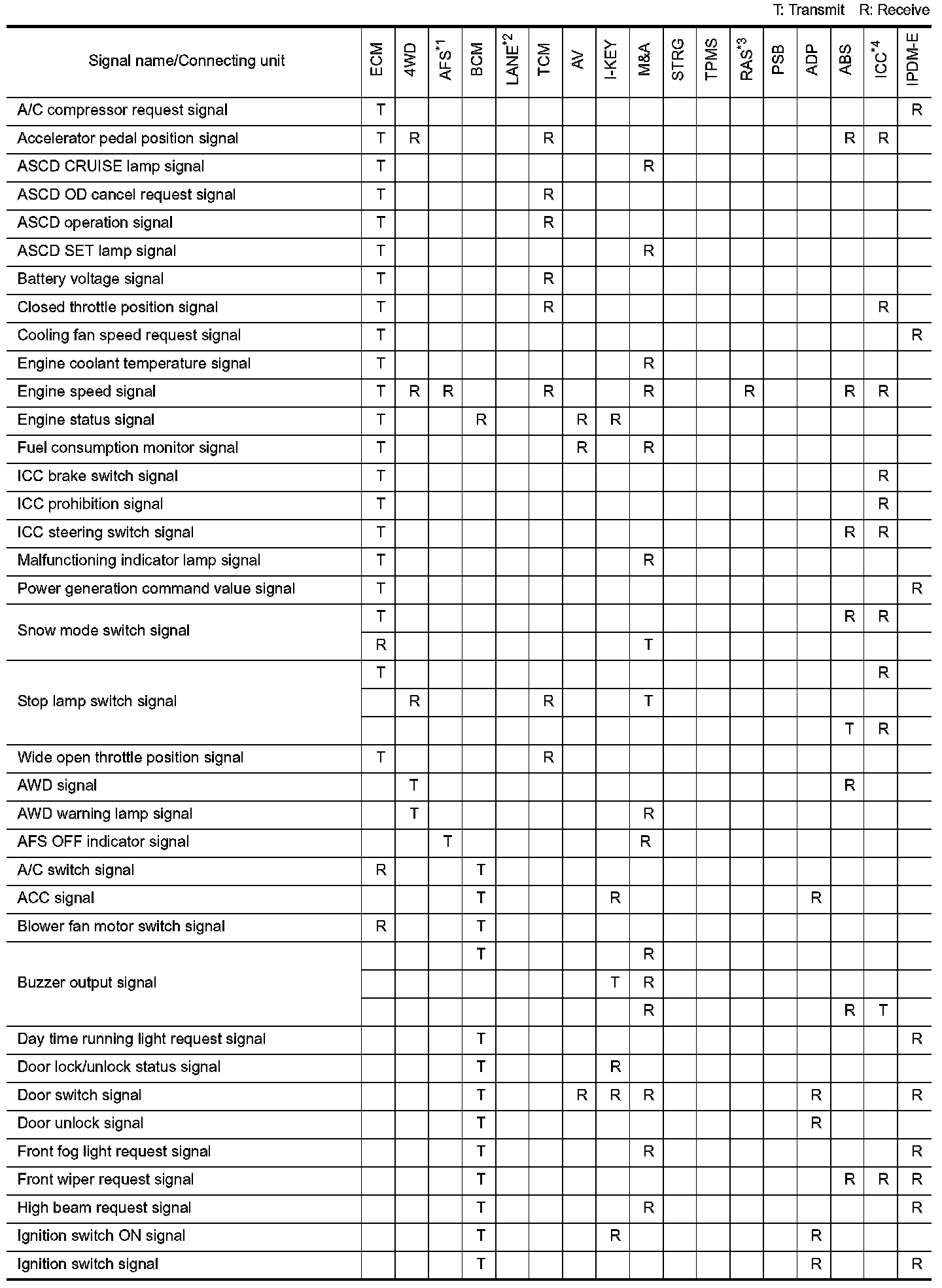

CAN Communication Signal Chart

CAN Communication Signal Chart
Refer to LAN-19, "How to Use CAN Communication Signal Chart" for how to use CAN communication signal chart. Trouble Diagnosis

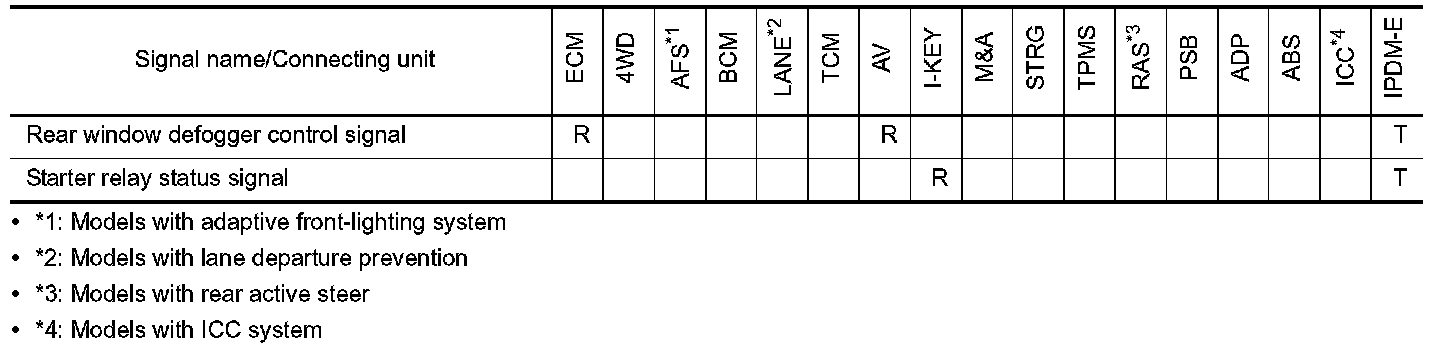

NOTE: Refer to LAN-25, "Abbreviation List" for the abbreviations of the connecting units. Abbreviation List
