Main Line Between TCM and DLC Circuit
COMPONENT DIAGNOSIS
MAIN LINE BETWEEN
TCM
AND
DLC
CIRCUIT
Diagnosis Procedure

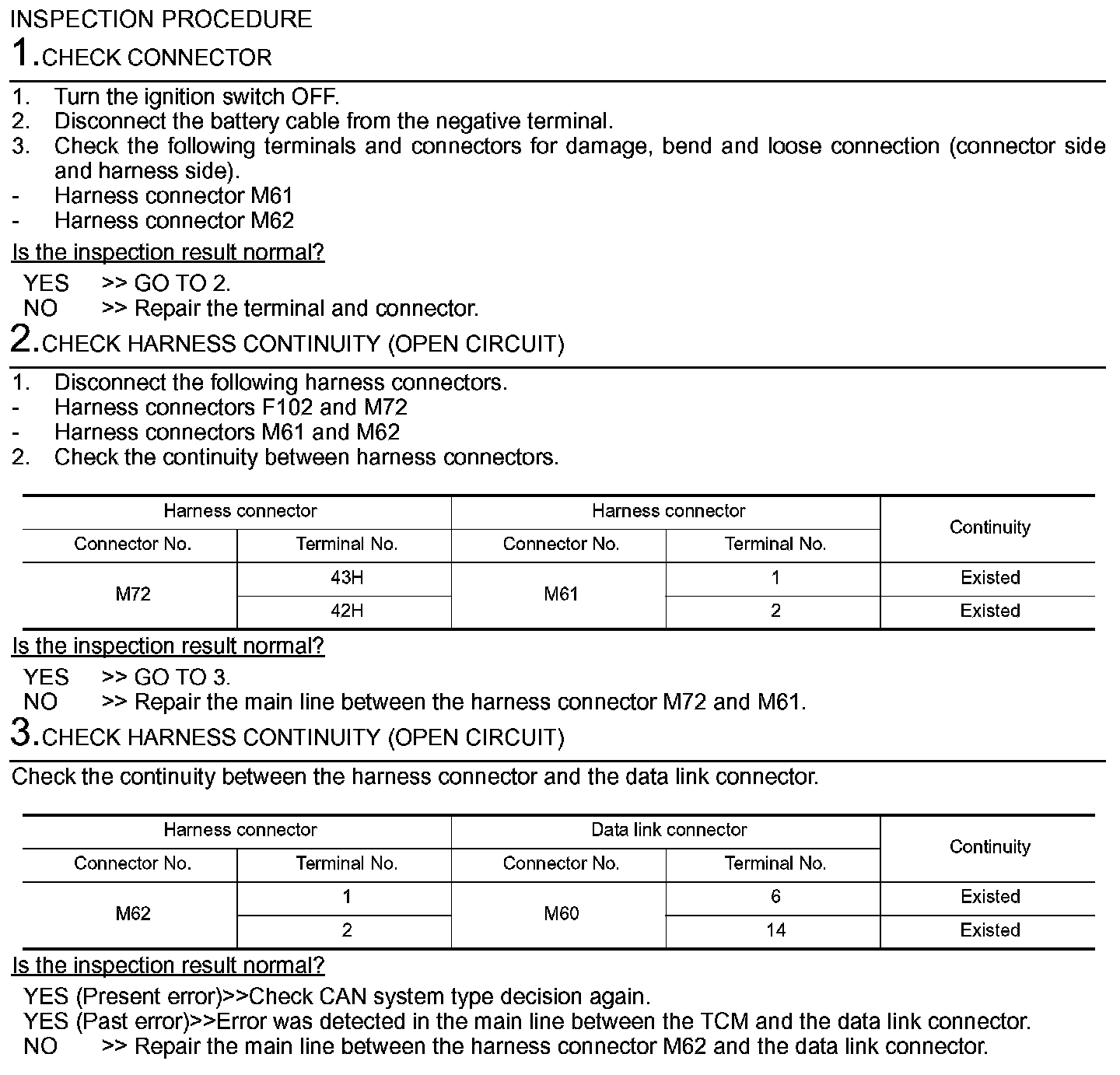

INSPECTION PROCEDURE
Step 1-3:
