Moonroof Glass Position Adjustment: Adjustment

Courtesy of HONDA, U.S.A., INC.

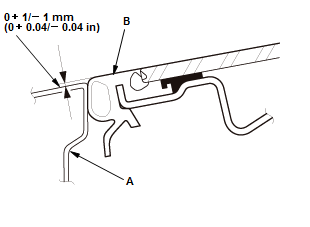

1. The roof panel (A) should be even with the glass weatherstrip (B) to within 0-1/-1 mm (0-0.04/-0.04 in) all the way around. If not, make the following adjustment.

Courtesy of HONDA, U.S.A., INC.

NOTE:  If necessary, repeat this procedure on the opposite side.

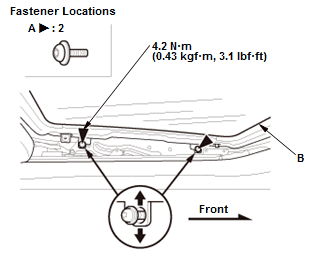

1. Slightly loosen the bolts (A) with a TORX T25 bit

2. Move the glass (B) up or down

3. Tighten all bolts securely.
