Removal & Installation

1. Driver's Dashboard Undercover - Remove - Refer to: Passenger's Dashboard Undercover Removal and Installation Driver's Dashboard Undercover Removal and Installation
2. Brake Pedal Position Switch - Remove

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the connector

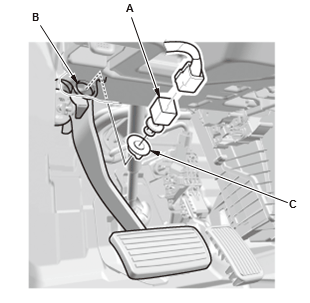

2. Turn the brake pedal position switch (A) 45° counterclockwise to remove the switch from the pedal bracket (B)

3. Remove the attaching piece (C).
3. Brake Pedal and Brake Pedal Position Switch - Adjustment
4. All Removed Parts - Install the parts in the reverse order of removal.
