Removal & Installation

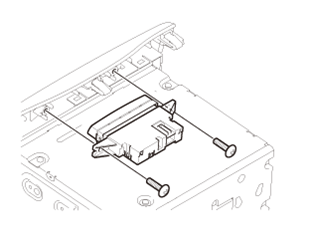

1. Audio-Navigation Unit - Remove (With Audio-Navigation Unit)
2. Audio Unit - Remove (Without Audio-Navigation Unit) - Refer to: Audio Unit Removal and Installation(With Display Audio)Audio Unit Removal and Installation(With Normal Audio)
3. Hazard Warning Switch - Remove

Courtesy of HONDA, U.S.A., INC.

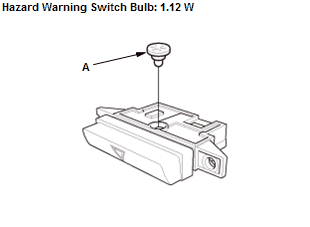

4. Hazard Warning Switch Bulb - Remove

Courtesy of HONDA, U.S.A., INC.

1. Turn the bulb (A) 45° counterclockwise to remove the bulb.
5. All Removed Parts - Install the parts in the reverse order of removal.
